Mechanical Equipment Hardware Accessories

Custom Processing of Non-standard Hardware Accessories

Develop, design and process various sheet metal parts and forming dies according to samples or drawings
Sheet metal stamping, sheet metal bending, sheet punching, riveting, welding and laser cutting services
Molding and processing services for various metal sheets such as carbon steel sheets, stainless steel sheets, and aluminum sheets

Products are widely used in Medical Equipment, Mechanical Equipment, Instrumentation, Home Decoration, Building, Railway and others

0.1 mm - 0.5 mm Stainless Steel Adjusting Washer

Size: 39.4 mm * 34.0 mm

Glass tempering furnace with 50 mm diameter stainless steel gasket

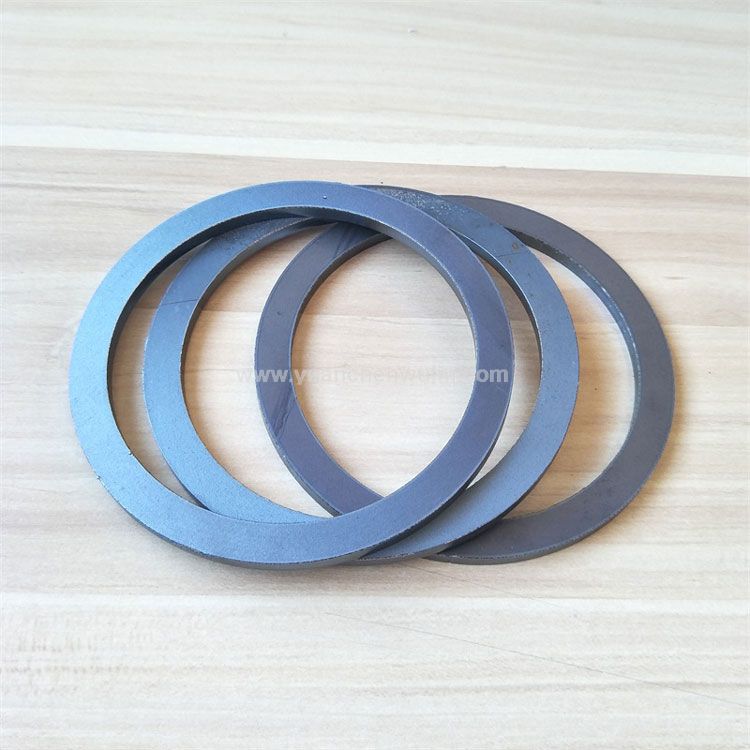

Valve gasket

Material: carbon steel
Thickness: 5mm
Outer diameter: 117mm
Inner diameter: 95mm
Weight: 125g

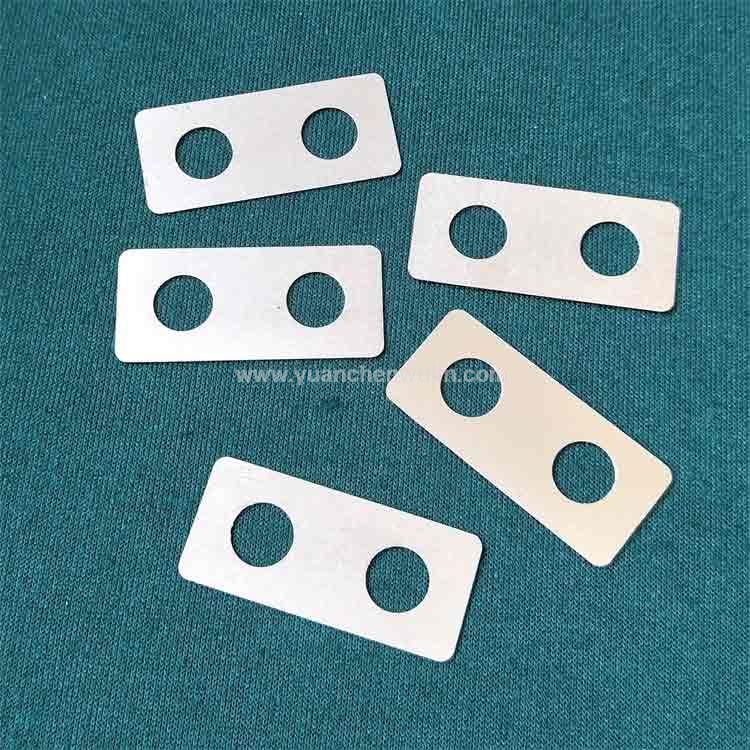

Turbine honeycomb seal stainless steel adjusting gasket

Material: stainless steel 302
Thickness: 0.2mm
Surface: Industrial surface
Size: 40mm*18mm
Tolerance: 0.2
Weight: 1g
Process: blanking, stamping
Uses: power equipment steam turbine, power equipment generator

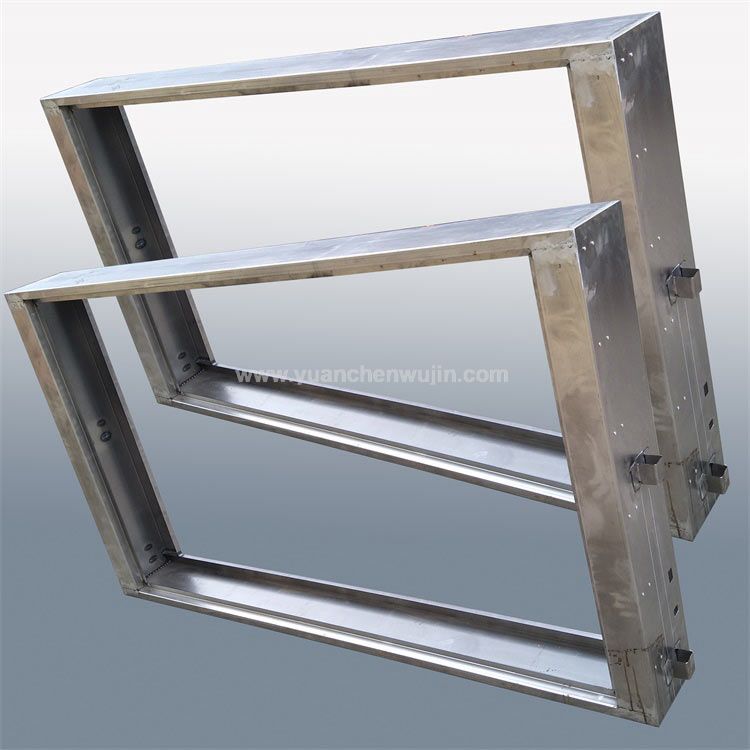

Metal welding frame
Material: iron plate
Thickness: 1.5mm
Surface: Industrial surface
Size: 2100mm*1200mm*240mm
Weight: 30kg
Process: bending, welding, grinding
Uses: Testing equipment Environmental protection equipment Mechanical equipment

Wire and cable fixing clamp

Material: carbon steel Q235
Platen thickness: 1.5mm
Square steel thickness: 10mm
Specification size: 140mm*25mm*20mm (5 holes)
Tolerance: 0.2
Surface: galvanized
Weight: 355g
Process: blanking, stamping, galvanizing

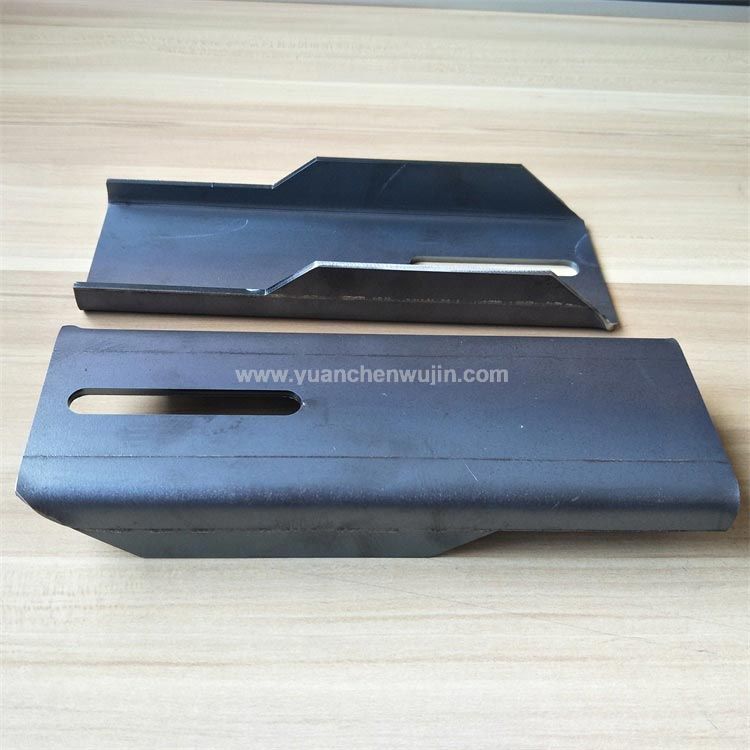

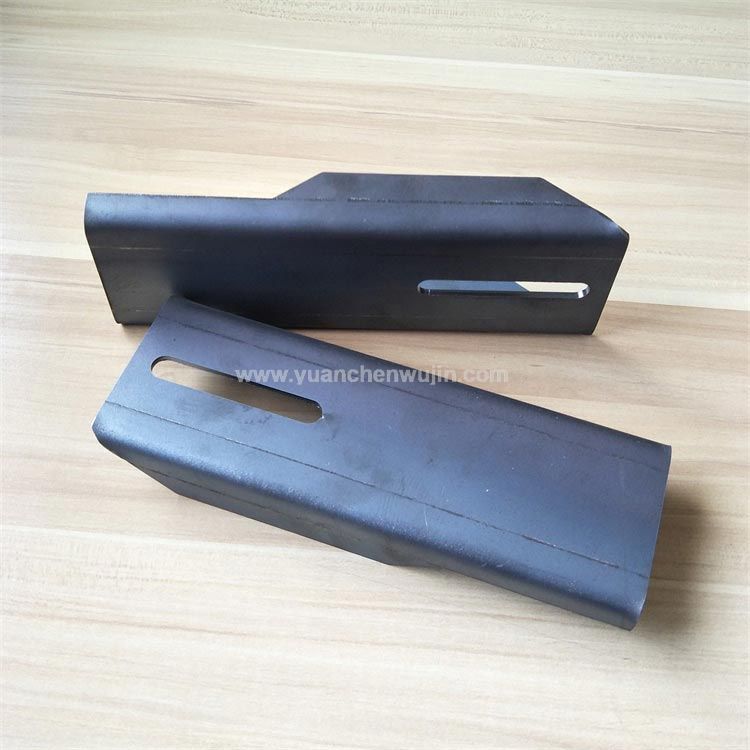

Support connector for combustion furnace

Material: carbon steel Q235
Thickness: 4mm
Size: 225mm*78mm*30mm
Tolerance: 0.2mm
Weight: 665g
Process: blanking, stamping, forming, bending
Uses: mechanical equipment, auto parts, burner accessories

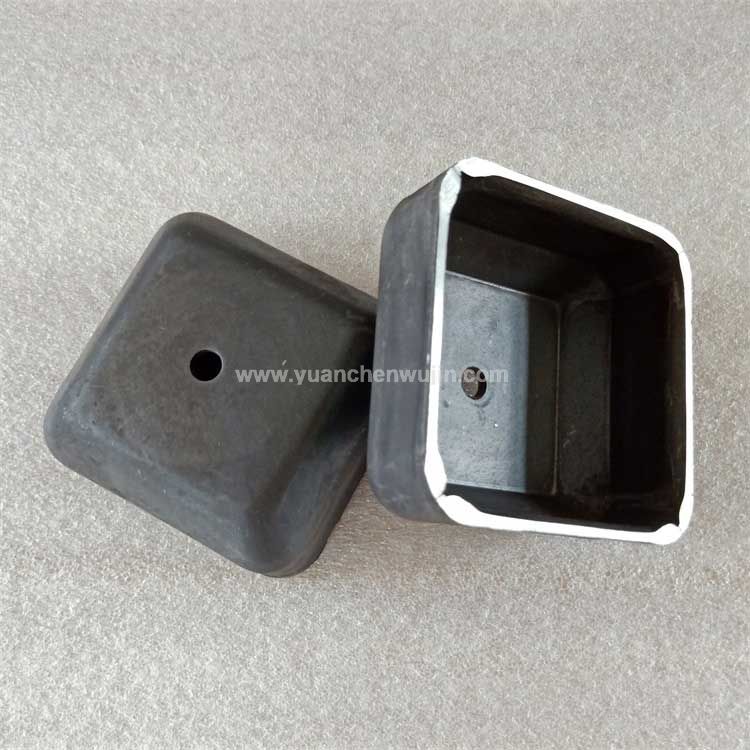

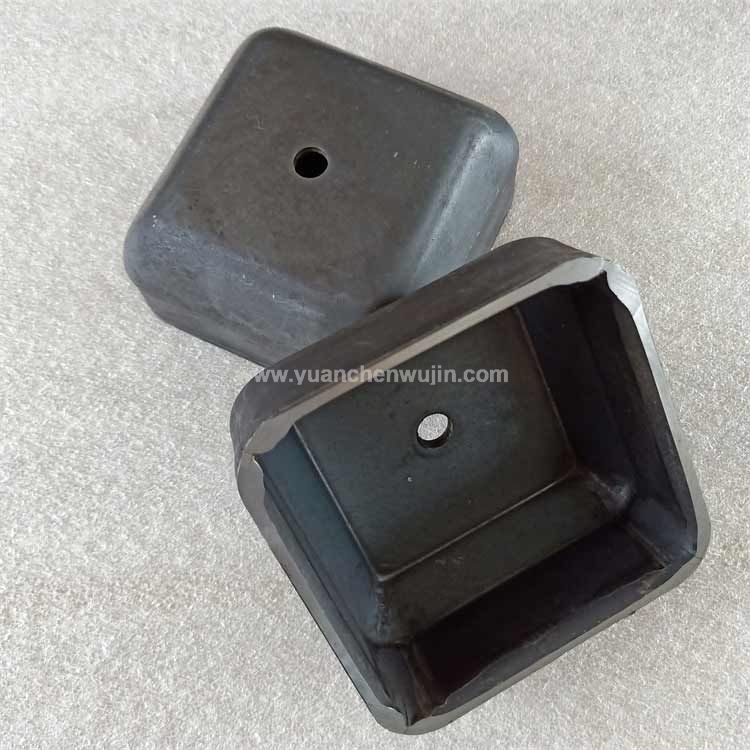

Foot support deep drawing piece

Material: hot rolled plate Q235
Thickness: 6mm
Surface: Industrial surface
Size: 100mm*100mm*50mm
Weight: 700g
Process: blanking, stamping, drawing, punching

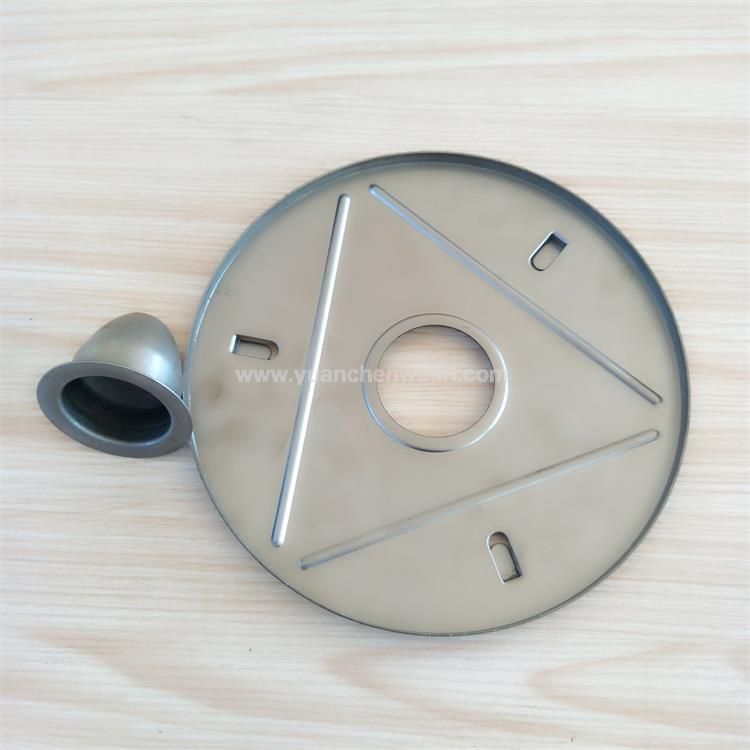

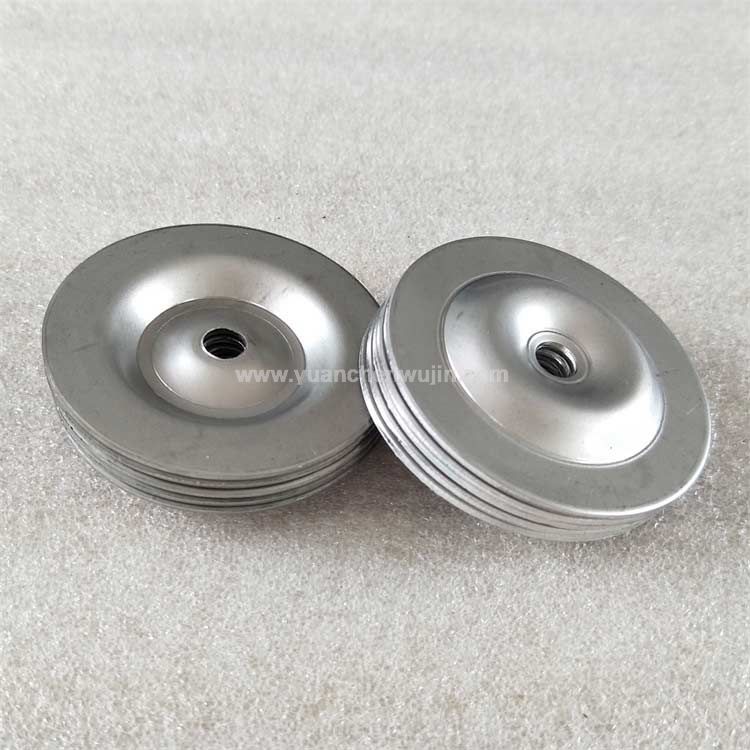

Wheel hub brace stampings
Material: carbon steel
Thickness: 1mm
Diameter: 210mm
Height: 40mm
Weight: 305g

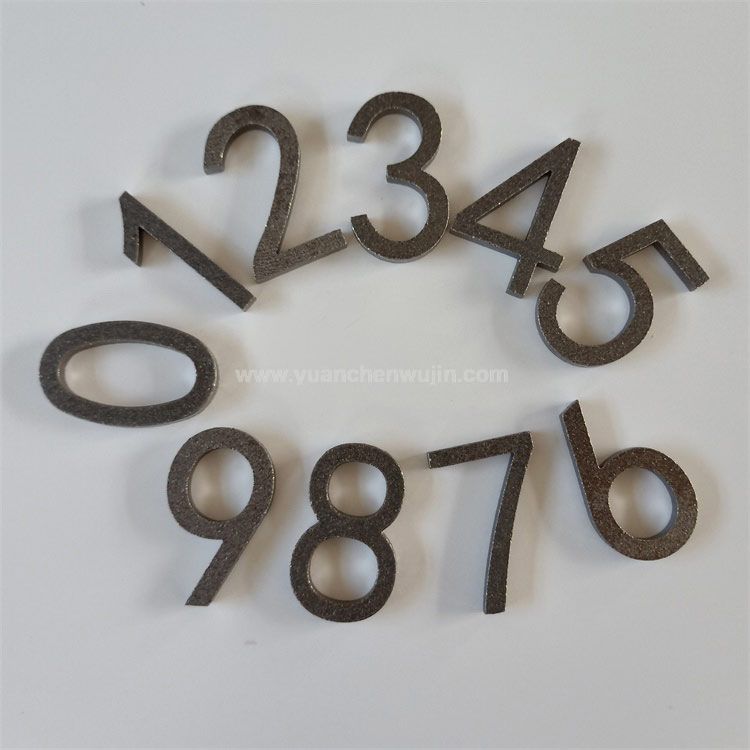

Equipment nameplate number
Packaging code letter


Material: hot rolled plate Q235
Surface: Industrial surface
Thickness: 6mm
Size: about 30mm*50mm
Process: Stamping
Uses: Product Code Product Mark Product Sorting Goods Code

Service:
OEM ODM Non Standard Customized Processing

Wire Cutting:
Max Length: 700 mm Max Diameter: 400 mm Max Thickness: 100 mm Tolerance: 0.02 mm

Laser Cutting:
Carbon Steel: 0.5 mm - 16 mm Stainless Steel: 1 mm - 8 mm Aluminum Alloy: 1 mm - 8 mm Brass: 1 mm - 4 mm
Max Size: 4000 mm * 2000 mm Positioning: ±0.03 mm Repeated: ±0.02 mm Maximum Speed: 169 m/min

Materials:
Carbon Steel Plate /Galvanized Sheet / Aluminum Alloy Plate / Stainless Steel Plate / Copper

Moulds:
Stamping Die / Punching Mould / Bending Mold / Deep Drawing Mould / Blanking Mold / Die Cutting

Processing:
Laser Cutting / Stamping / Punching /Sheet Bending / Metal Forming / Metal Welding / Riveting

Category:
Cable Hooks / Metal Enclosure / Shims / Spring Pieces / Hinges / Embedded Parts / Gaskets / Clips

Applications:
Machinery / Equipment / Building / Electronic / Automobile / Medical Device / Handicrafts / Home / Decorative

Professional Manufacturer OEM/ODM
Sheet Metal Fabrication/Nonstandard Metal Parts/Safety Glass Test Equipment
