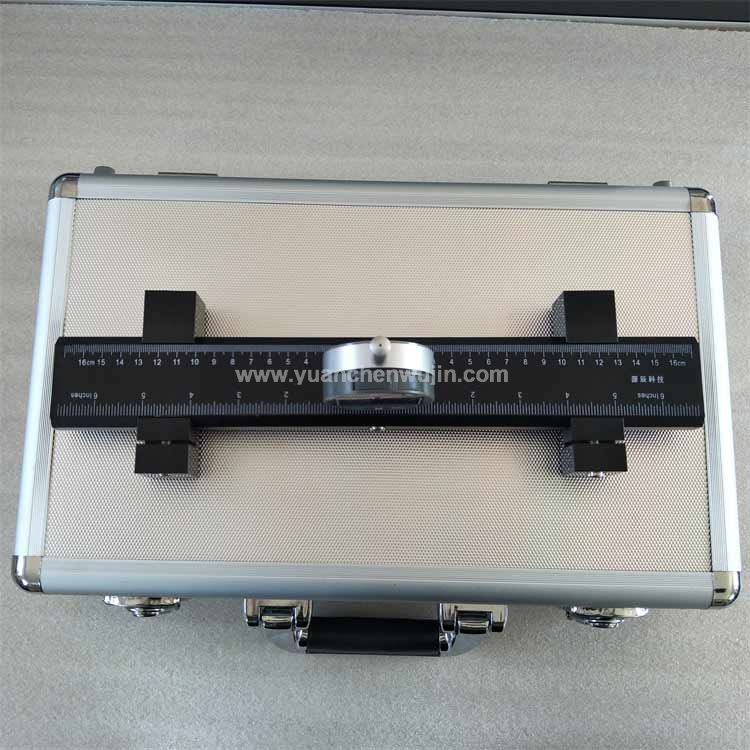

Contact Flatness Measuring Instrument

Marble Flatness Measuring Tool

Hand-held flatness measuring instrument for measuring the surface flatness of marble, ceramic tiles, glass and aluminum alloy profiles.
On-site measurement, quick comparison.Marble Flatness Measuring Tool

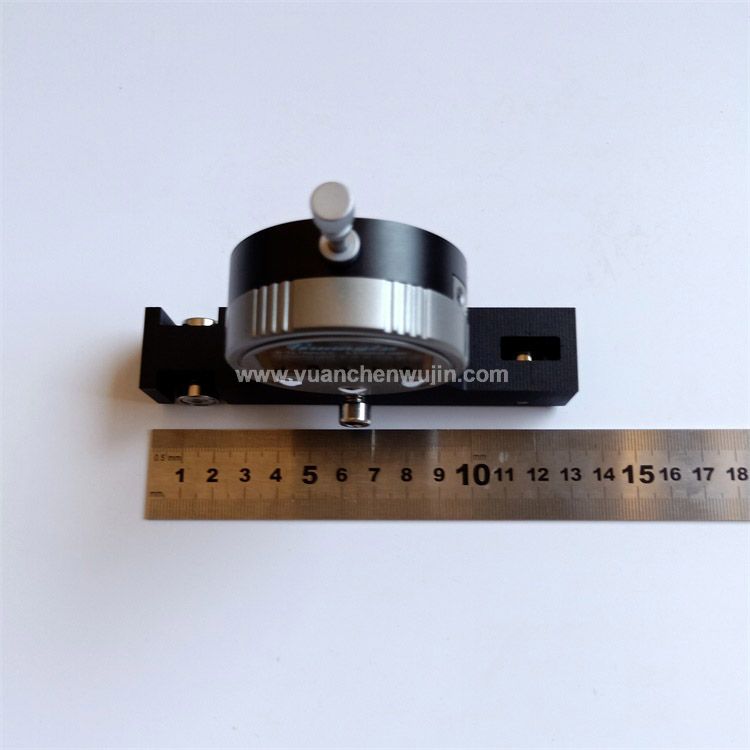

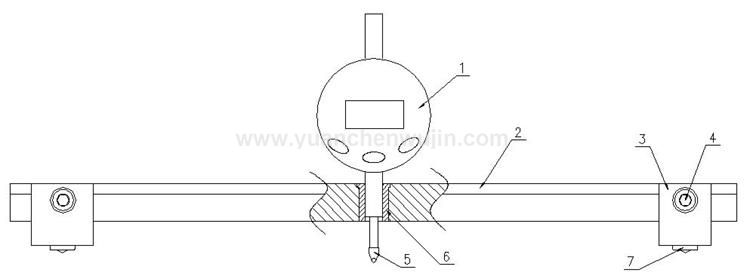

1, Display table 2, Support plate 3, Support block 4, Fixing bolt 5, Measuring head 6, Fixing part 7, Supporting foot

Related standard:

1)      GB 15763.2 Safety glazing materials in building

- Part 2: Tempered glass

Clause 5.4 Camber measuring

2)      AS NZS 2208 Safety glazing materials in buildings

Clause 2.5 Flatness requirements

Application:

3)      Measurement of arcuate form and wave form of toughened glass

Technical parameters:

4)      Resolution: 0.01mm

5)      Measuring Span: 300mm-12000 mm ( Customized)

6)      Working Temperature: 0~+40℃

7)      Working Humidity: ≤80%

Instruction:

8)      Adjust the measurement and set up to track the maximum data. Adjust the span of the support block according to request.

9)      Adjust the position of measuring head, to ensure that the measuring head is beyond 2mm-3mm of the plane of three support feet.

10) Gently stick the surface of the glass to ensure that three supporting feet are able to touch the glass.

11) Slide the measure location and read the data.

Product features:

12) Continuous measurement and monitoring of the flatness of the glass, data display and recorded.

13) Simple operation, fast measurement, low cost, widely used in the flatness measurement of glass.

14) The specifications of the equipment are various; the measuring span (300mm, 500mm, 800mm, 1000mm, and 1200mm) can be customized according to customers’ requirements.

Various testing equipment

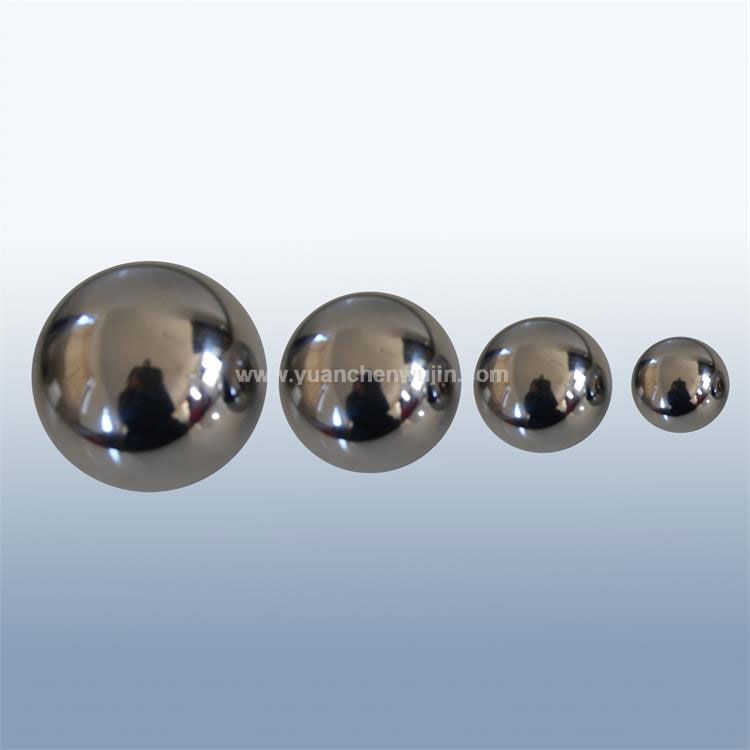

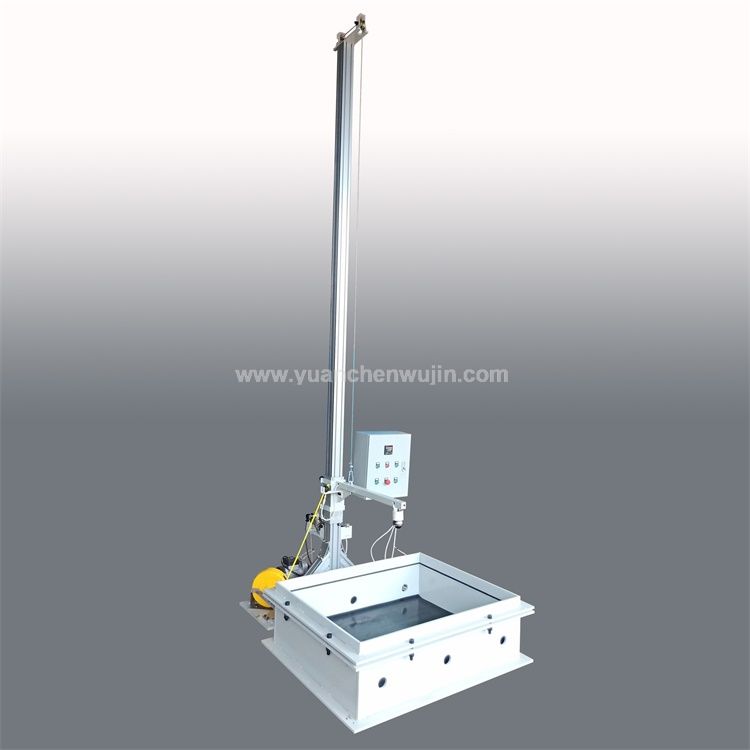

Ball Drop Test Device:

Steel Ball 2260g/1040g/508g/227g

Drop Height 1m-12m

Samples: 300mm/610mm

Pummel Test Device:

Hammer head diameter: 30mm

Impact Distance: Adjustable

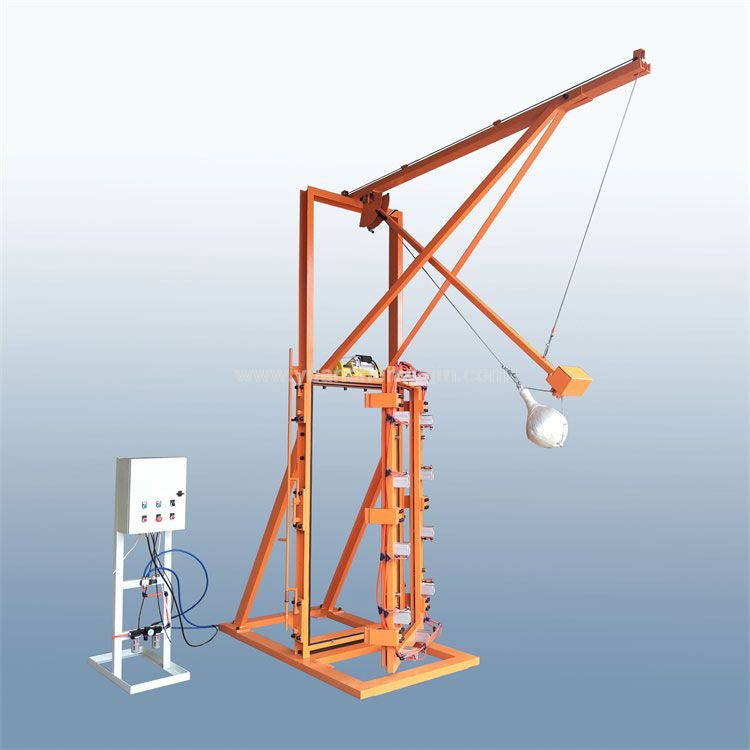

Shot Bag Impact Testing Frame:

Shot Bag 45kg/46kg

Automatic Release

Electric Lifting

Pneumatic Clamping

Head Form Test Device

Head Weight: 10kg

Head Size: 500mm*932mm

Impact height: < 1.5m

Samples size: 1100mm*500mm

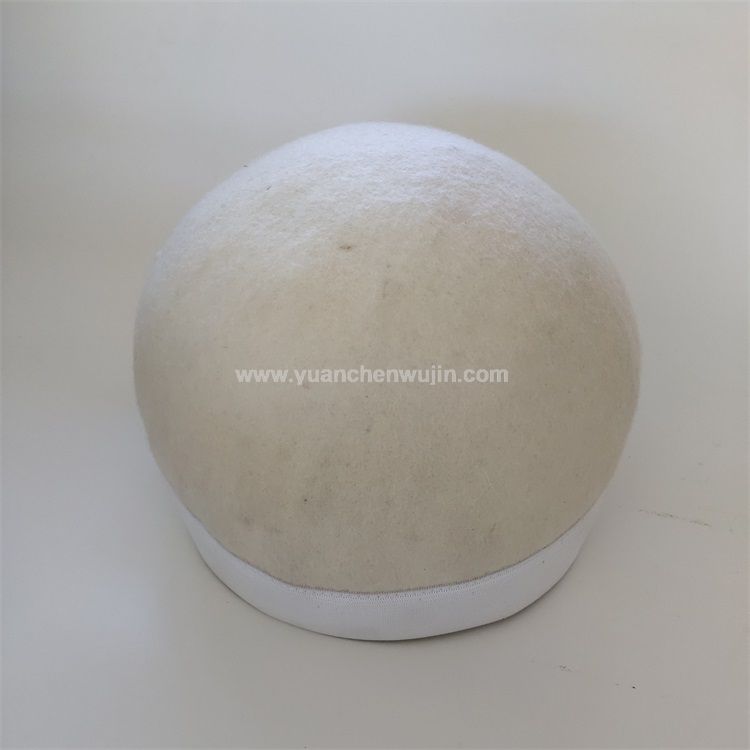

Felt hat: 150g/95mm/5mm

Frame size: 1400mm*666mm*320mm

PV Load Test Equipment

Size: 6425mm*2000mm*3490mm

Samples: 1643mm*991mm~2009mm*1027mm (Customized)

Source: Sandbag

Load: 2400Pa 5400Pa 8100Pa 10000Pa (Customized)

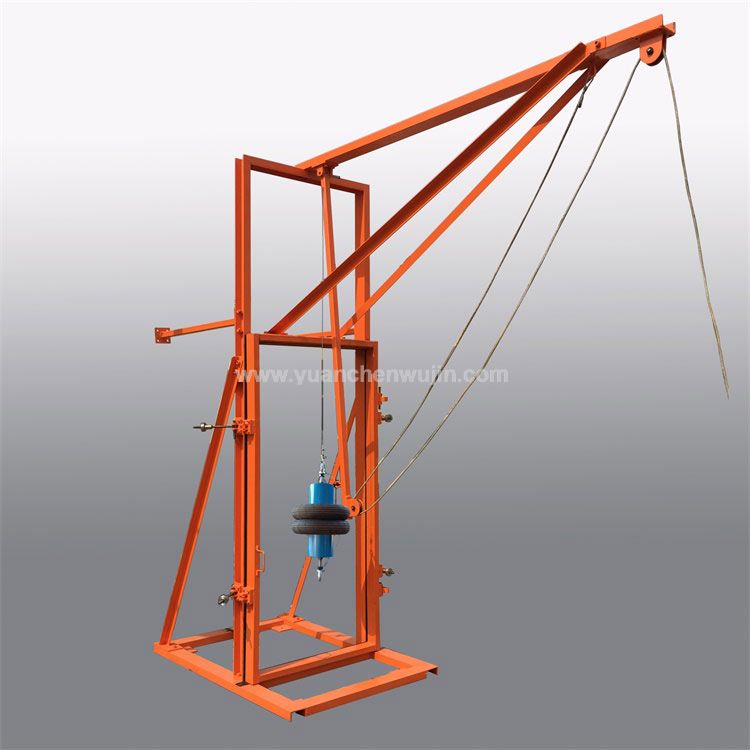

Pneumatic Tyres Device

Weight 50 kg ± 0.1 kg

Tire pressure: 0.35Mpa ± 0.02Mpa

Type: 3.50-R8 4PR

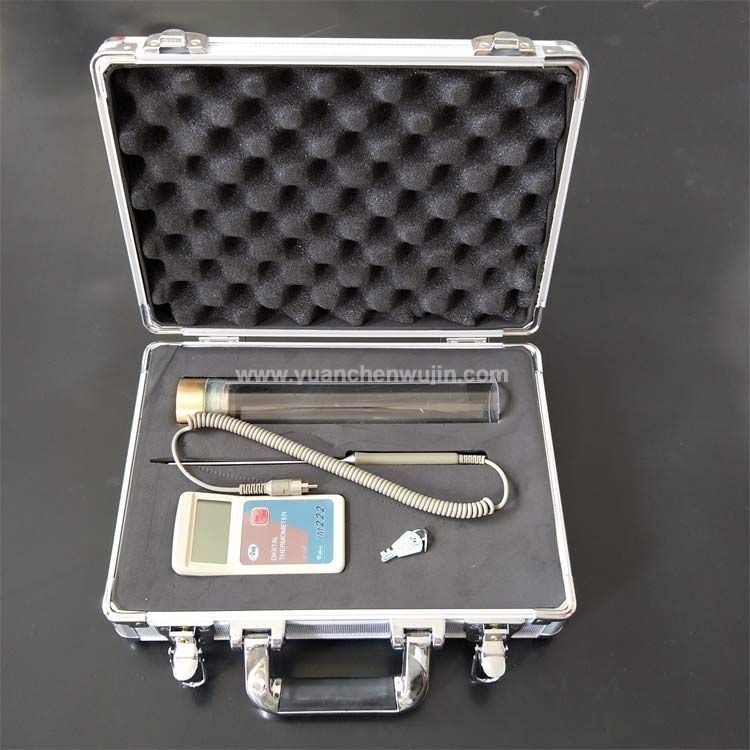

Insulating Glass Dew Point Meter

Operating temperature: -80°C ~ 100°C

Tube height: 300mm

Tube diameter: 50mm

Temperature resolution: 0.1 °C

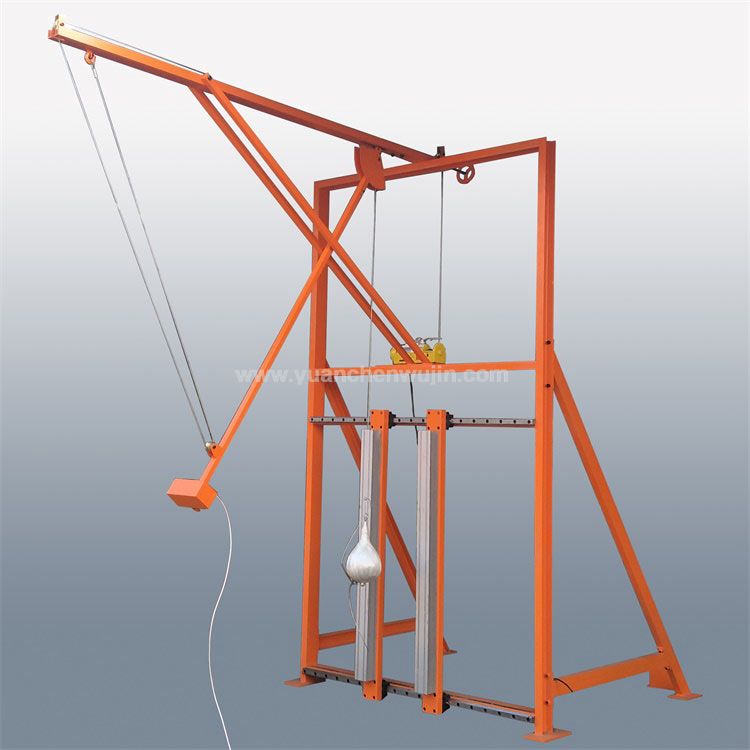

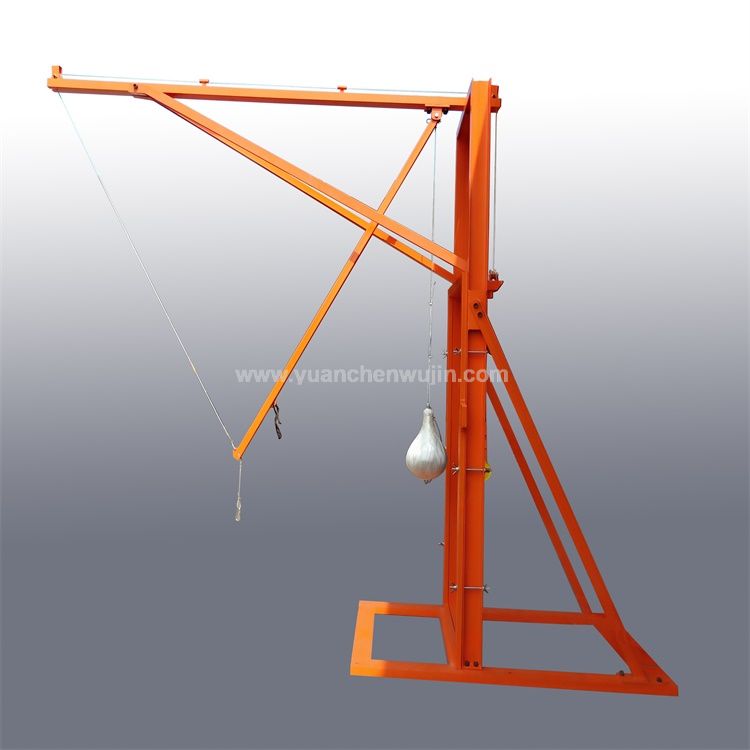

Hard/Soft Pendulum Shock Test for Lifts

Hard pendulum shock device

Height: 330± 15mm

Max diameter: 240±10mm

Weight: 10kg ± 0.1kg

Material: according to ISO standard

Filler: 3.5mm + 0.25mm

Soft pendulum shock device

Height: 330mm ± 15mm

Maximum diameter: 240mm±15mm

Weight: 45kg ± 0.5kg

Material: leather bag

Filler: diameter 3.5mm ± 1mm lead sand

Laminated Glass High Temperature Test Oven

Power: 220V 50Hz 3Kw (Customized)

Outside Size: 400mm*255mm*480mm

Inside Size: 400mm*255mm*480mm

At most 6 samples with 300mm*300mm

Tempered Glass Flatness Measuring Instrument

Measurement of arcuate form and wave form of toughened glass

Resolution: 0.01mm

Measuring Span: 300mm-12000 mm ( Customized)

Impactor for building Glass and Metal Guardrail

Impact Steel ball

Weight: 1040g ± 10g

Dia: 63mm

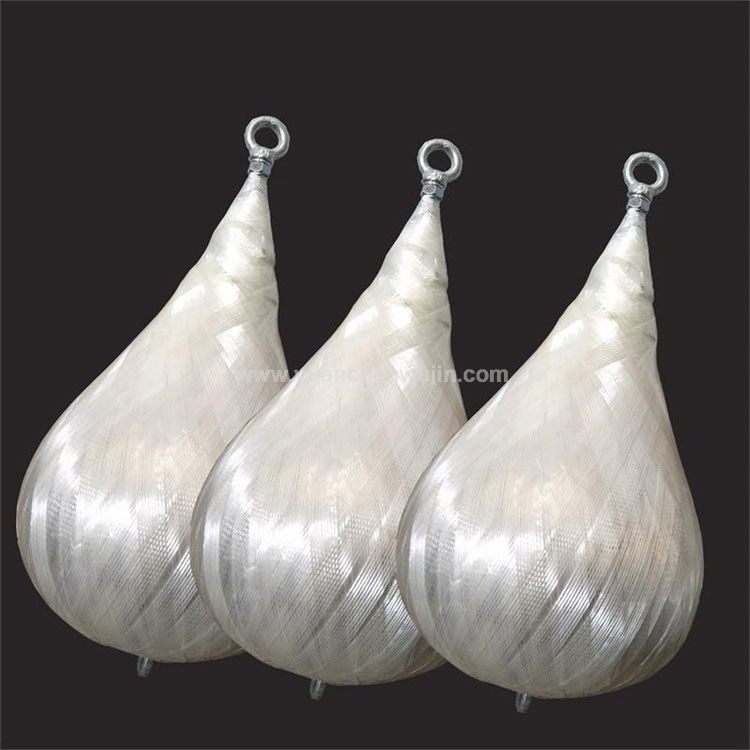

Shot bag impactor

Data:

Weight: 45kg ± 0.1kg

Height: 330mm ± 13mm

Max diameter: 250mm

Material: leather bag filling lead shot

Leather thickness: 0.15mm

Lead sand size: 2.5mm

Hard and Soft Body Impactors for Opaque Wall Components

Soft body:

Weight: 50kg

Dia: 400mm

Conical canvas bag filles with 3mm glass sphere

Hard Body:

Steel Ball 0.5 kg/50mm

Steel Ball 1 kg/62.5mm
