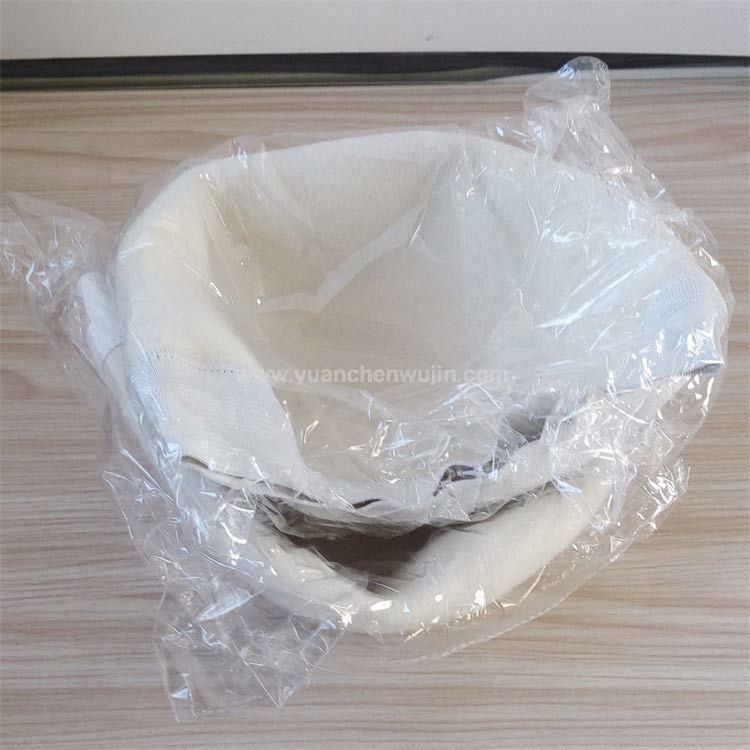

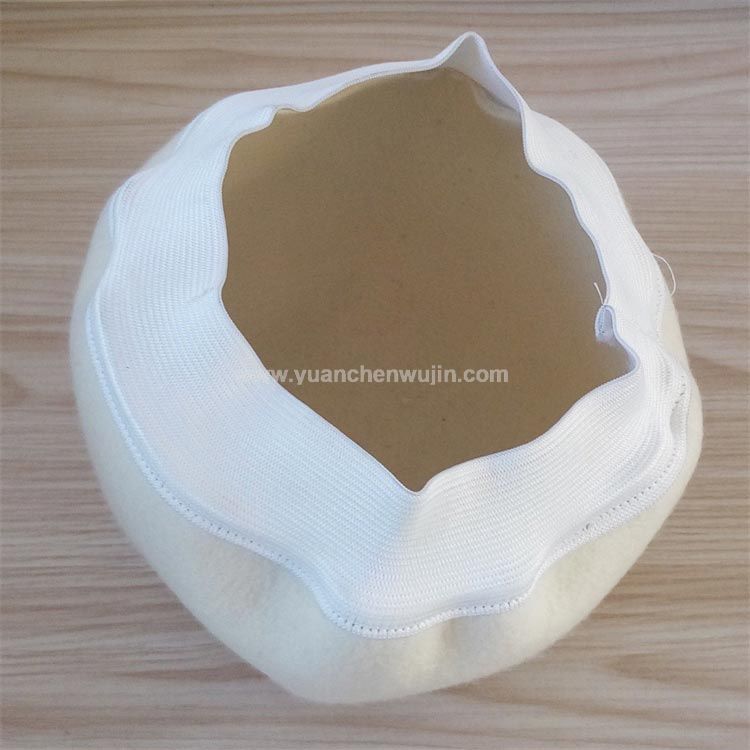

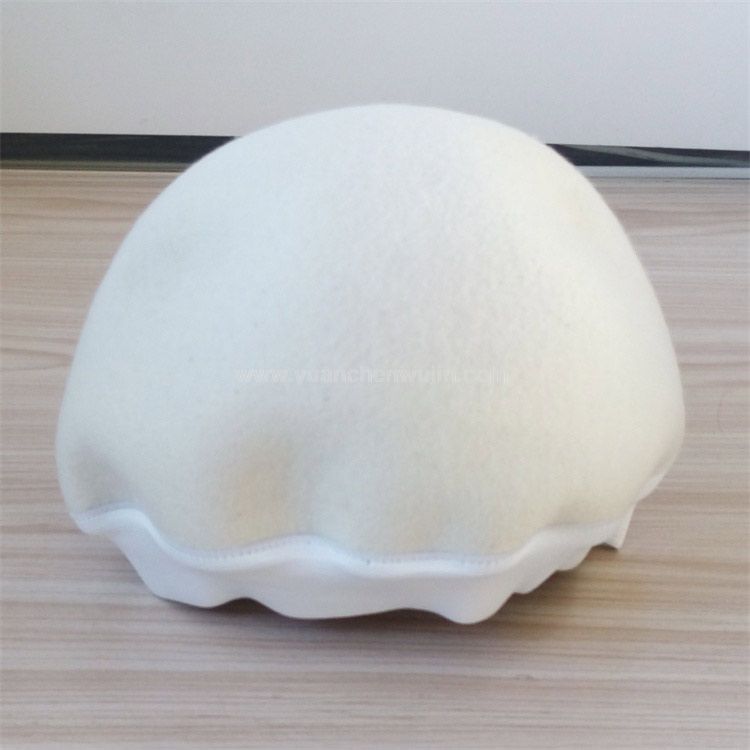

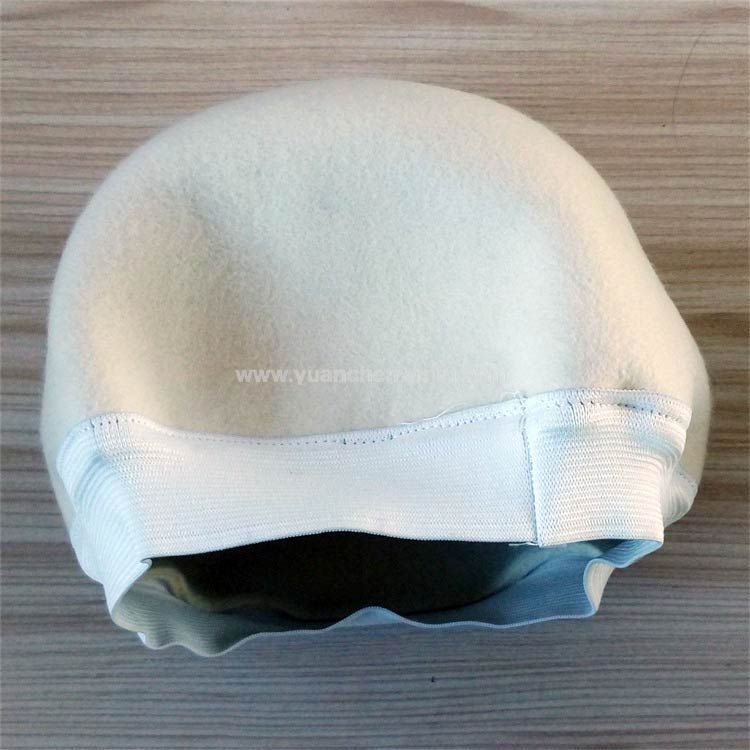

Felt Cover

Name: Felt Cover
Material: wool felt
Radius: 95 mm
Thickness: 5 mm
Function: Used for the head-form weight to assess the minimum strength and cohesion of the safety glass under impact from a blunt, bulky object.
Reference standard：
GSO ISO 3537 Road vehicles – Safety glazing materials — Mechanical tests – Clause 8 Head-form test
ECE-R43-01 Uniform provisions concerning the approval of safety glazing materials and their installation on vehicles – Annex3 General test conditions – Clause3 Headform test
Apparatus：
Head-form weight, with a spherical or semi-spherical head made of laminated hard wood covered with replaceable felt and with or without a cross-beam made of wood. Between the spherical part and the cross-beam, there is a neck-shaped intermediate piece and on the other side of the cross-beam, a mounting rod . The total mass of the apparatus shall be (10 + 0.2) kg.
The impact surface of the felt cover shall be replaced after twelve tests.

Yuanchen supply all kinds of testing equipment for safety glazing materials and PV module

All equipments design and produce according standard

Ten Years Experience in Production and Processing

Stock Supply/Complete Set of Glass Testing Equipment

Major Suppliers of China's Market Safety Glass Testing Equipment

OEM/ODM/Development, Design and Processing of Various Testing Equipment

Equipment List:

Ball Test Device

Pummel Test Device

Shot Bag 45kg/46kg

Impact Testing Frame

Head Form Test Device

PV Load Test Equipment

Target Light Source Instrument

Anti Smashing GlassTest Frame

Insulating Glass Dew Point Meter

Crushing Pen for Tempered Glass

Hard/Soft Pendulum Shock Test for Lifts

Optical Distortion Measuring Instrument

Hardened Steel Ball 2260g/1040g/508g/227g

Laminated Glass High Temperature Test Oven

Mechanical load test equipment for PV Module

Tempered Glass Flatness Measuring Instrument

Impactor for building Glass and Metal Guardrail

Our Advantages:

Ten Years Experience in Production and Processing

Stock Supply/Complete Set of Glass Testing Equipment

Major Suppliers of China's Market Safety Glass Testing Equipment

OEM/ODM/Development, Design and Processing of Various Testing Equipment

Various of Test Equipment According to Safety Glass Chinese Standard / Australian Standard / European Standard

Independent Right to Import and Export/Alibaba.com Trade Assurance Supplier
