Headform Test Device

Related Standard:

ISO 3537 Road vehicles --Safety glazing materials -- Mechanical tests - Clause 10 Head-form test

-ISO 15082 Road vehicles — Tests for rigid plastic safety glazing materials

GB/T 5137.1 Road vehicles--Safety glazing materials

--Part 1: Test methods for mechanical properties

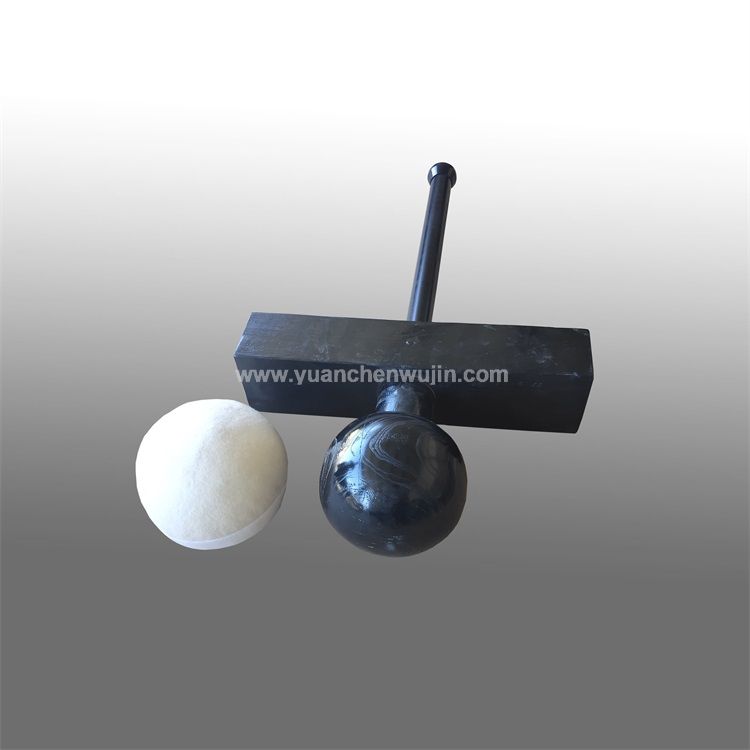

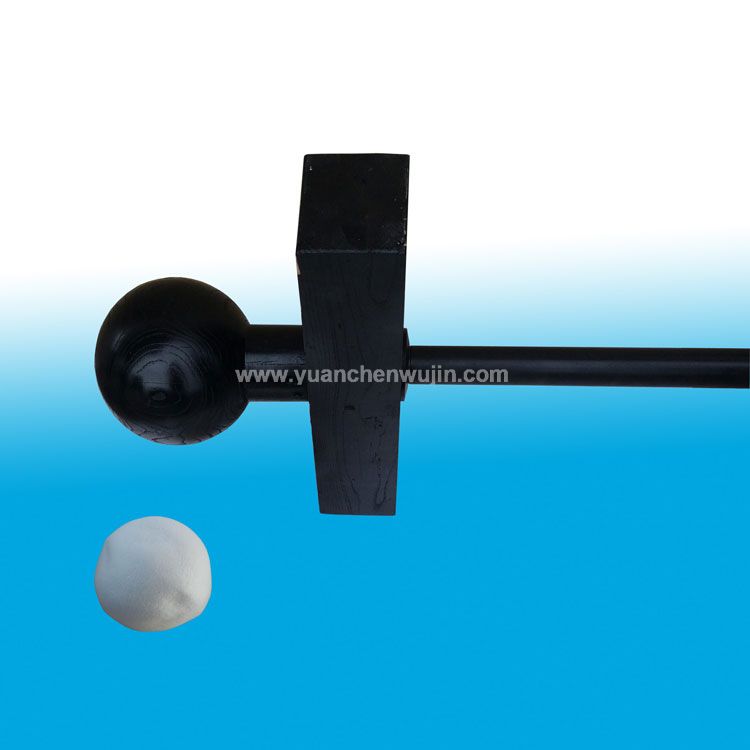

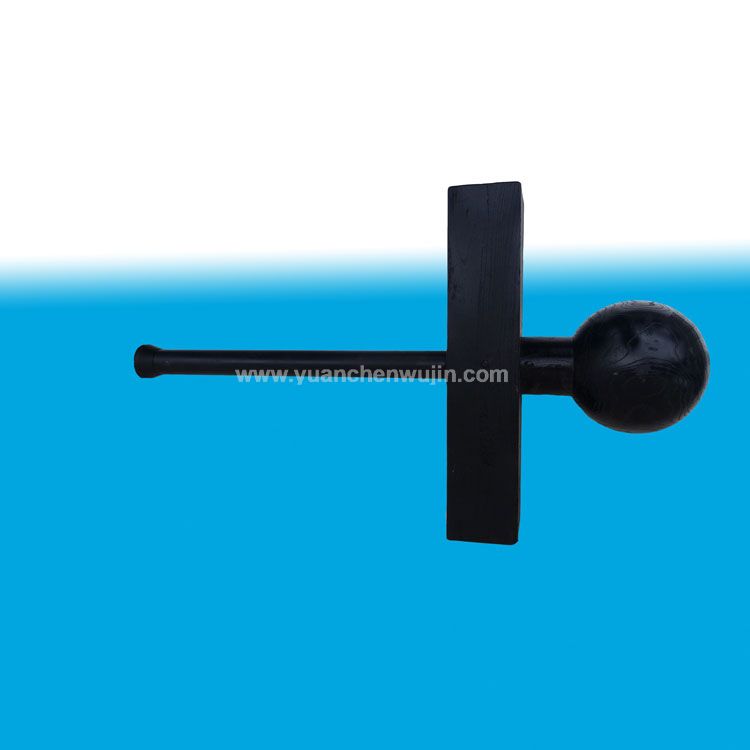

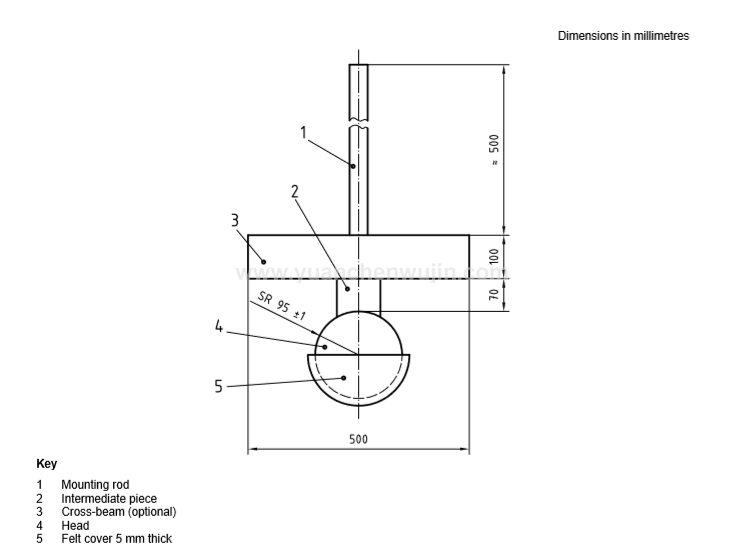

Between the spherical part and the cross-beam, there is a neck shaped intermediate piece and on the other side of the cross-beam, a mounting Rod.

Application:

The purpose of this test is to verify the compliance of glazing with the asking relating to the limitation of injury in the event of impact of the head against the windscreen, laminated glass and glazing of glass-plastic and rigid plastic other than windscreens, together with The double-glazed units used in the side windows.

Data:

Head Weight: 10kg

Head Size: 500mm*932mm

Impact height: < 1.5m

Samples size: 1100mm*500mm

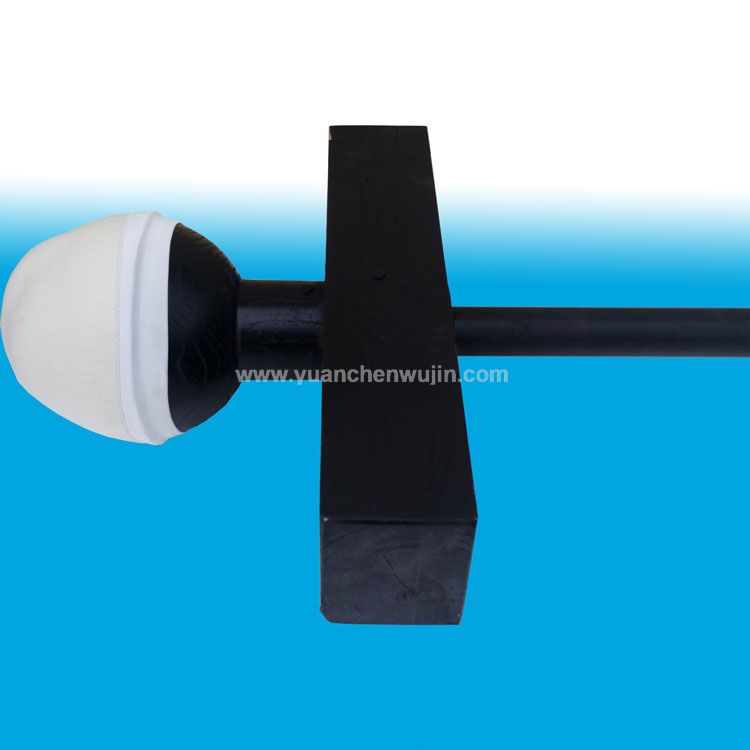

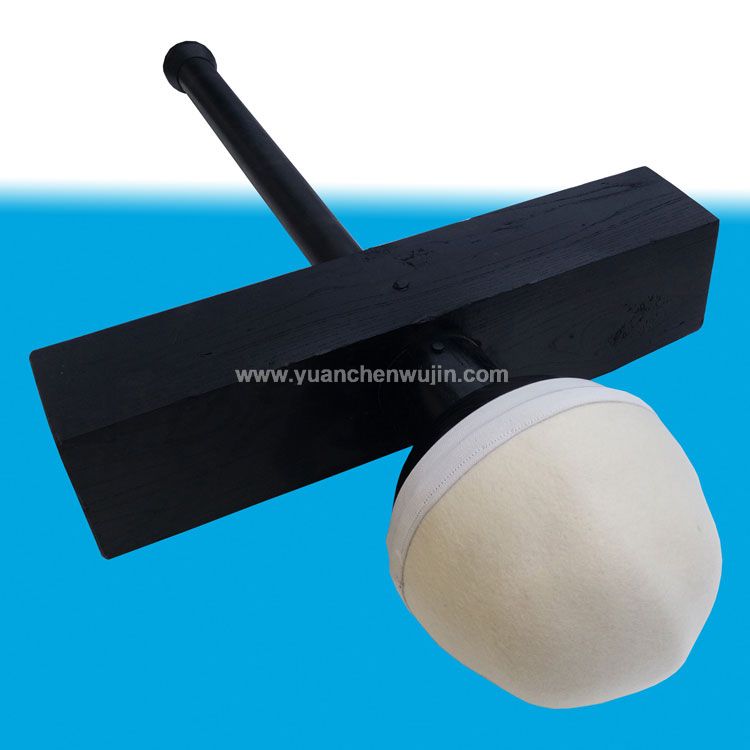

Felt hat: 150g/95mm/5mm

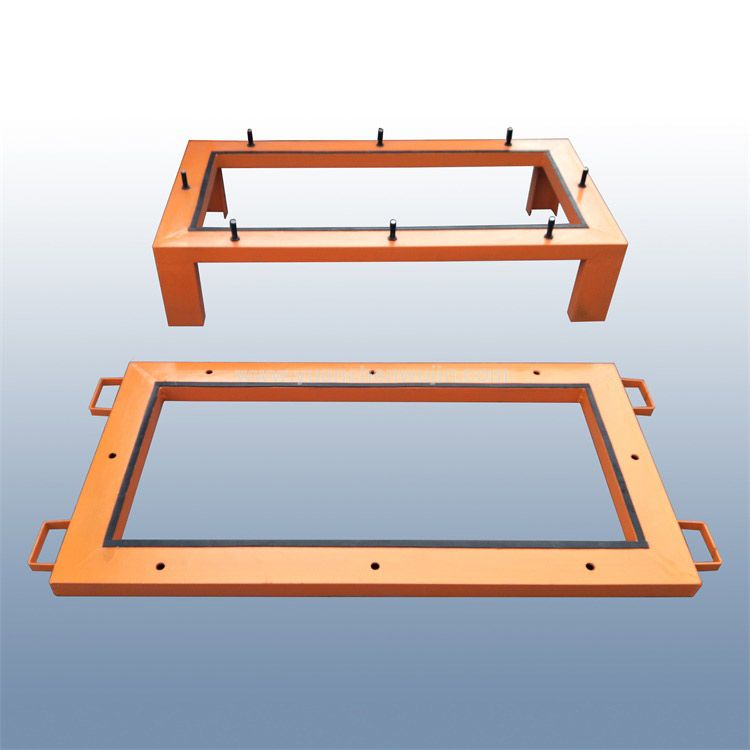

Frame size: 1400mm*666mm*320mm
