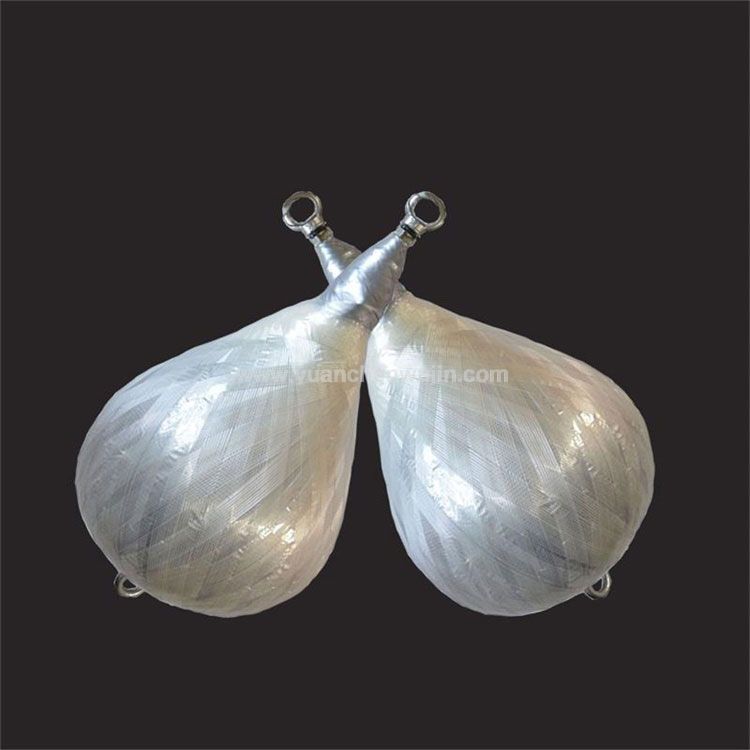

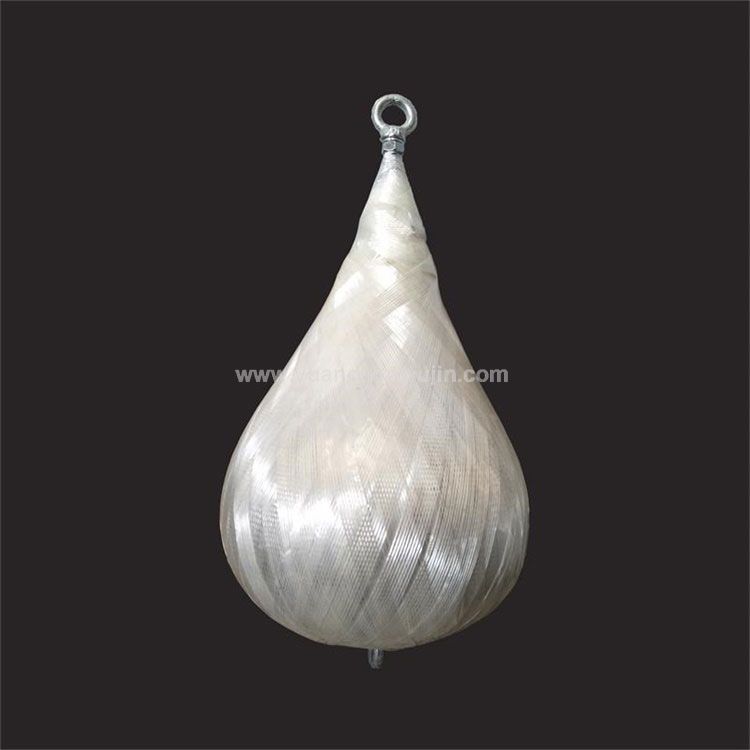

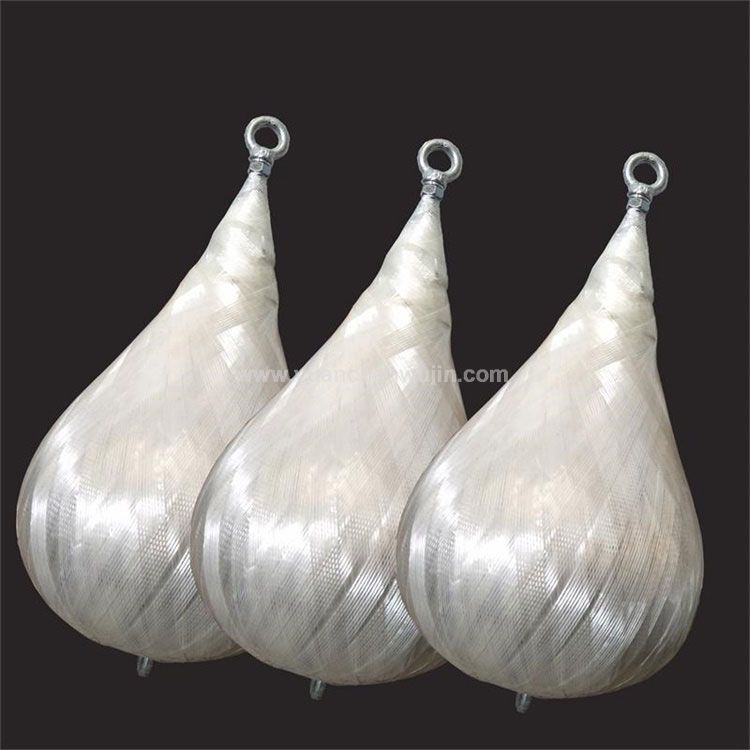

Shot Bag Impactor

Impactor of Impact Test for Safety Glazing Materials Used in Buildings

Shot Bag of Test device for the impact performance for Safety glazing materials in building

Impacting Shot Bag of Impact Test for Safety glazing materials in buildings

Related Standards:

1) AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test

2) GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag

3) ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.1: Impact Test

4) ASTM : E2353 Standard Test Methods for Performance of Glazing in Permanent Railing Systems, Guards, and Balustrades – Clause 7.3 Shot Bag, Traction and Release System

5) Application:

6) Determining the resistance of glazing materials to impact by the penetration method

Structure:

7) Reinforced leather bag filled with chiller lead shot

Technical Data:

8) Weight: 45kg ± 0.1kg 46kg ± 0.1kg

9) Height: 330mm ± 13mm

10) Max diameter: 250mm

11) Lead sand size: 2.5mm

Customized 25kg 48k

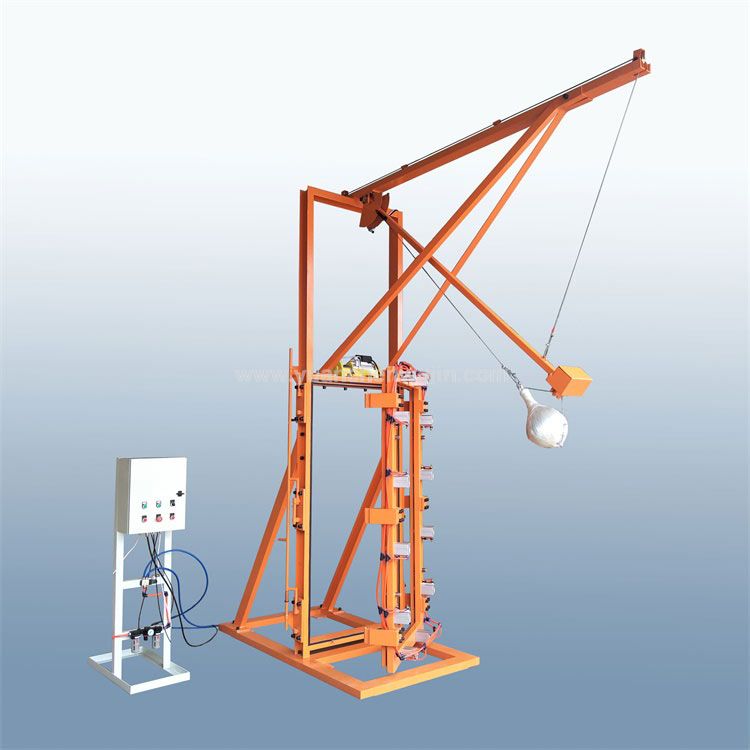

Impact Testing Machine
