Glass Impact Resistant Testing Device

Yuanchen provide all kinds of safety glass testing device:

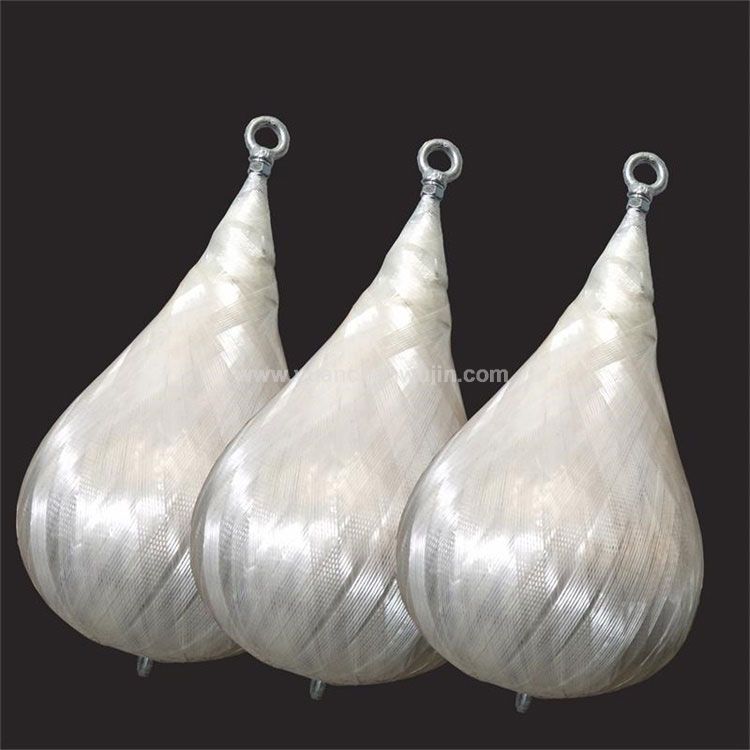

1.      Impacting Shot bag：

a)      Related Standards:

                                     i.              AS/NZS 2208 Safety glazing materials in buildings

                                  ii.              GB 15763.3 Safety glazing materials in building Part 3: Laminated glass

b)     Application：Determining the resistance of glazing materials to impact by the penetration method

c)      Structure:

                                     i.              Reinforced leather bag filled with chiller lead shot

d)     Technical Data:

                                     i.              Weight:45kg±0.1kg 46kg±0.1kg

                                  ii.              Height: 330mm ± 13mm

                               iii.              Max diameter: 250mm

                                iv.              Leather thickness: 0.15mm

                                   v.              Lead sand size: 2.5mm

e)      Customized 25kg 48kg

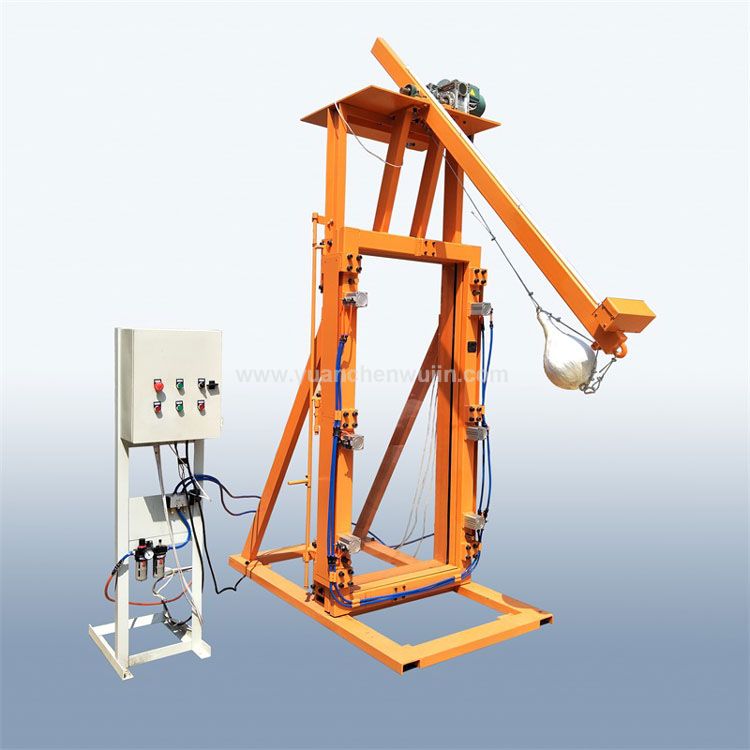

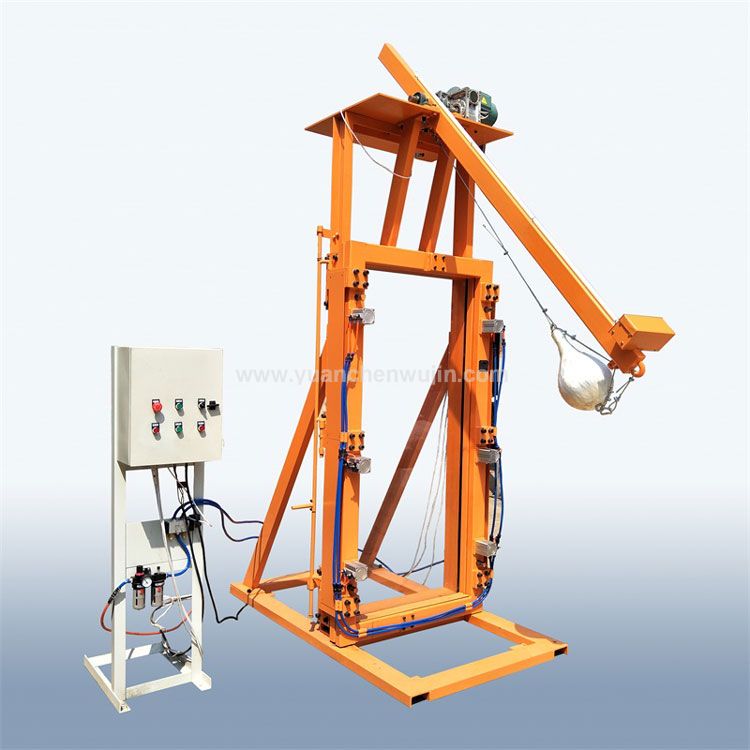

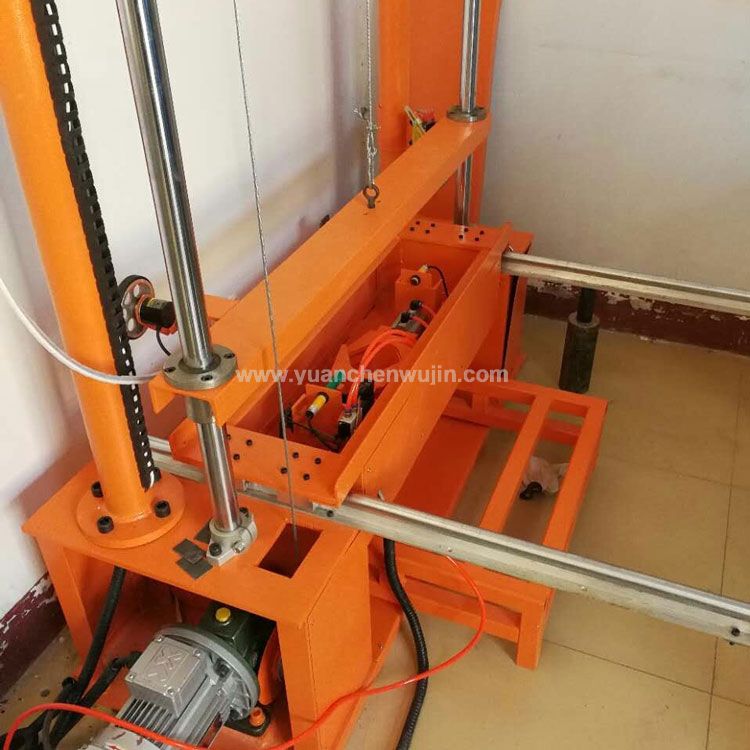

2.      Shot bag impact frame

a)      Shot bag:45kg

b)     Most dia of shot bag:250mm

c)      Size:1900mm×1500mm×3570mm

d)     Samples size:1930mm×864mm

e)      Lift：Elctric

f)       Release:Auto

g)      Maximum impact height: 1200mm (customized)
Rubber pad: width 15mm thickness 3mm shore A50 hardness

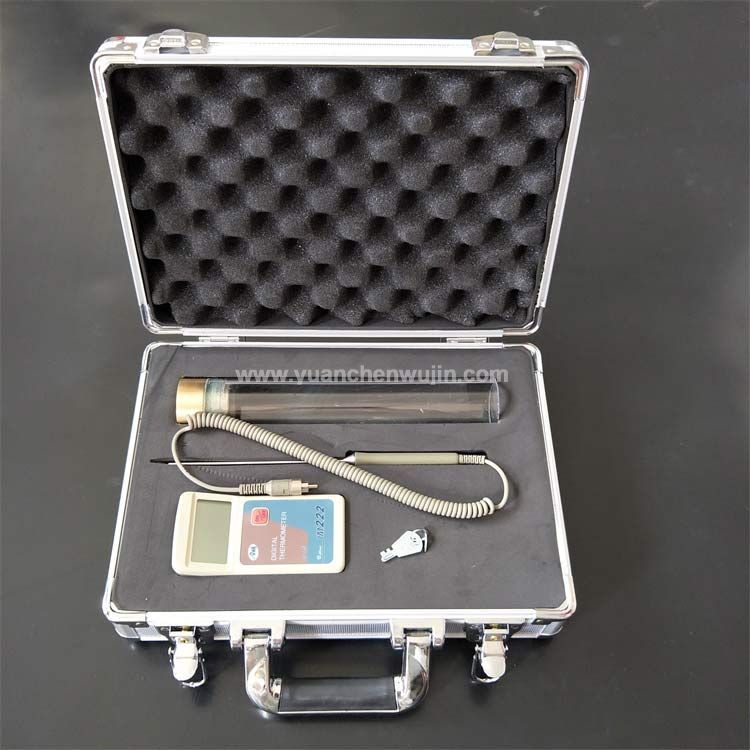

3.      Insulating glass Dew point meter

a)      Measuring range: -80℃ ~ 100℃

b)     Measurement accuracy: less than or equal to 1 ℃

c)      Tube height: 300mm

d)     Tube diameter: 50mm

e)      Test temperature: 23℃ + 2℃;

f)       Relative humidity: 30% ~ 75%;

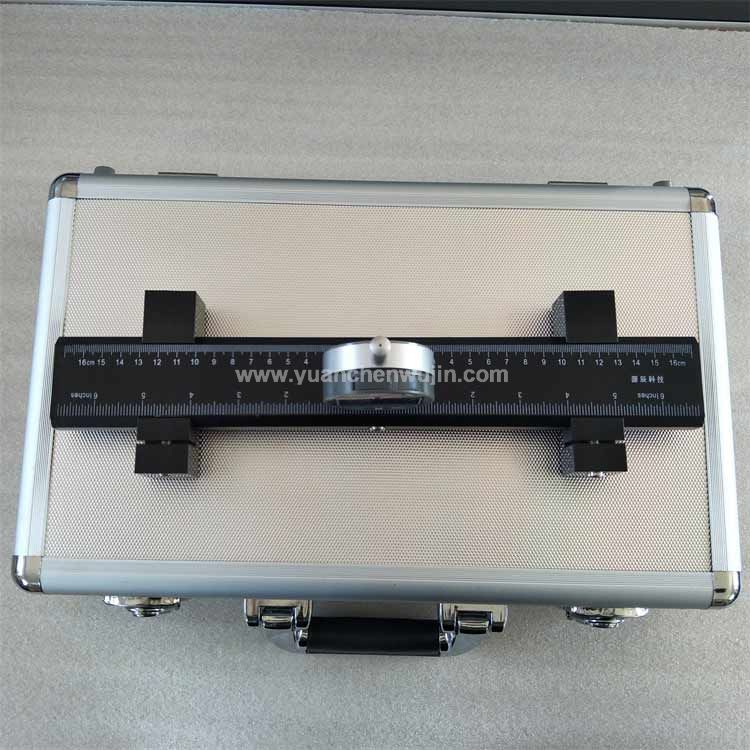

4.      Flatness measuring instrument

a)      Measuring the flatness of tempered glass

b)     Check the effect of tempering

c)      Assist in adjustment of laminated glass process

d)     Resolution: 0.01mm

e)      Measuring distance: 30mm-340mm (300mm, 500mm, 800mm, 1000mm, 1200mm), customized

f)       Working temperature: 0 ~ 40 centigrade

g)      Working humidity: less than 80%

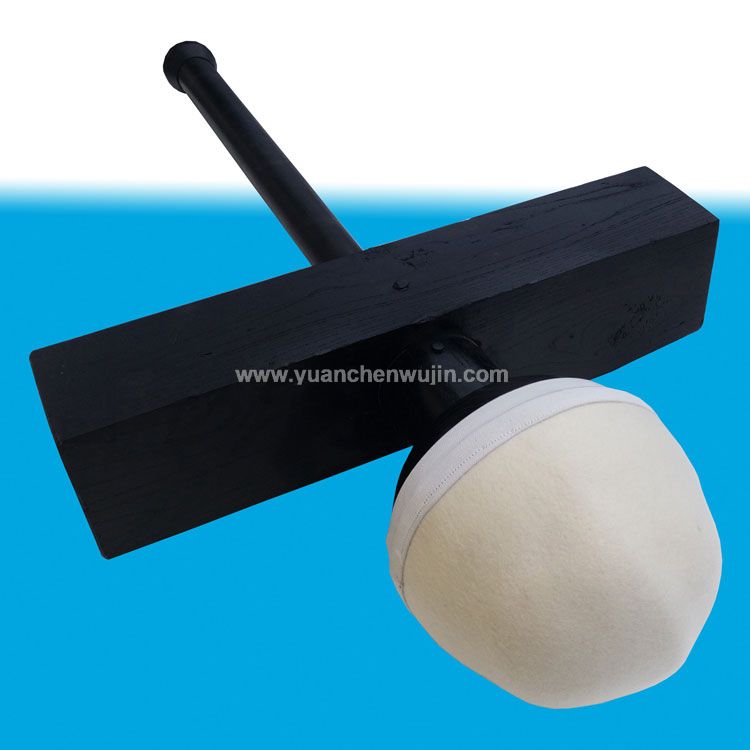

5.      Safety glazing headform test device

a)      Head model:10kg/500mm*932mm

b)     Felt hat:90g/89mm

6.      Test frame of forced entry resistant glass and impact tool

Sample size: 610mm*610mm (customized) Fire ax length: 810mmFlat axe weight: 1.80KG

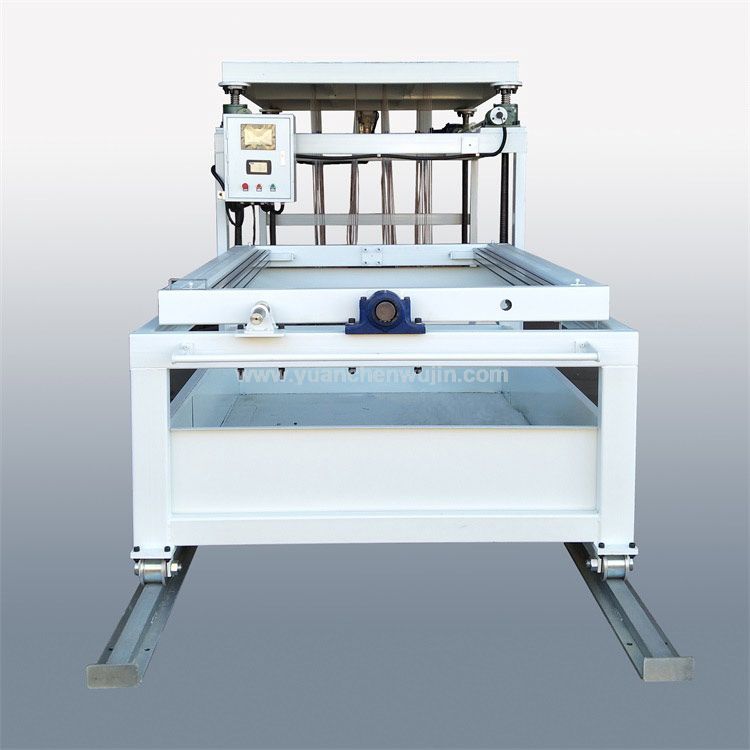

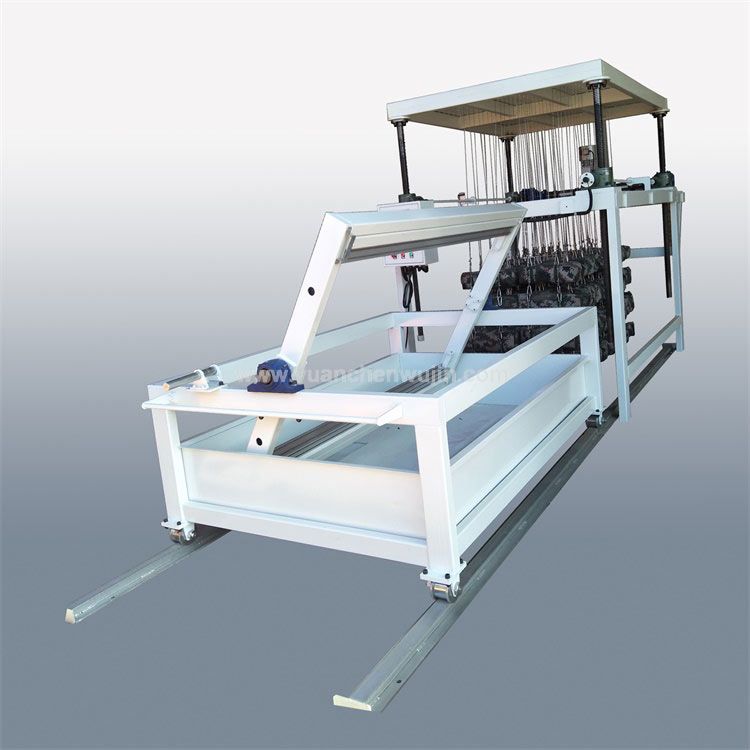

8.      Mechanical load test equipment for PV Module

9.      Test the mechanical load of the  photovoltaic module to withstand wind, snow, static or ice loads.

10. Standard:IEC 61215:2005

11. Technical parameters:

12. Size: 6000mm*3500mm*2900mm (customized)

13. Maximum test size:3000mm*2000mm(customized）

14. Pressure source: sandbag / cylinder (customized)

15. Load: 2400Pa, 5400Pa, 10800Pa controllable and adjustable

16. Pressure control accuracy: ±3%

17. Power : 380V/50HZ

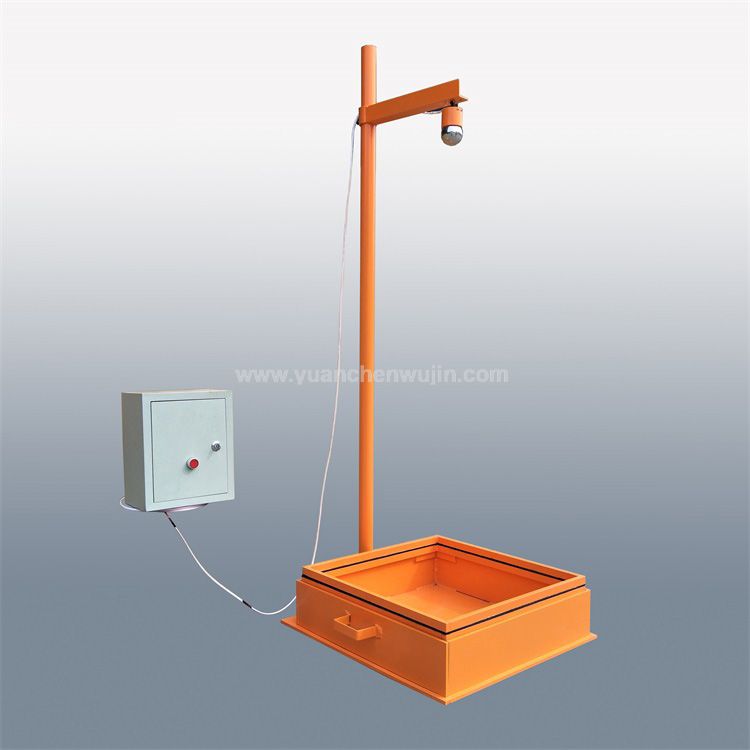

18. Ball-impact test frame/Steel ball

19. Steel ball: 2260g + 20g, 227g + 2g, 1040g + 10g
Test height: 1200mm, 1500mm, 1900mm, 2400mm, 3000mm, 3800mm, 4000mm, 10000mm, 12000mm(customized)
Sample size: 300mm x 300mm   610mm 610mm
Frame: 350mm x 350mm   660mmx  660mm

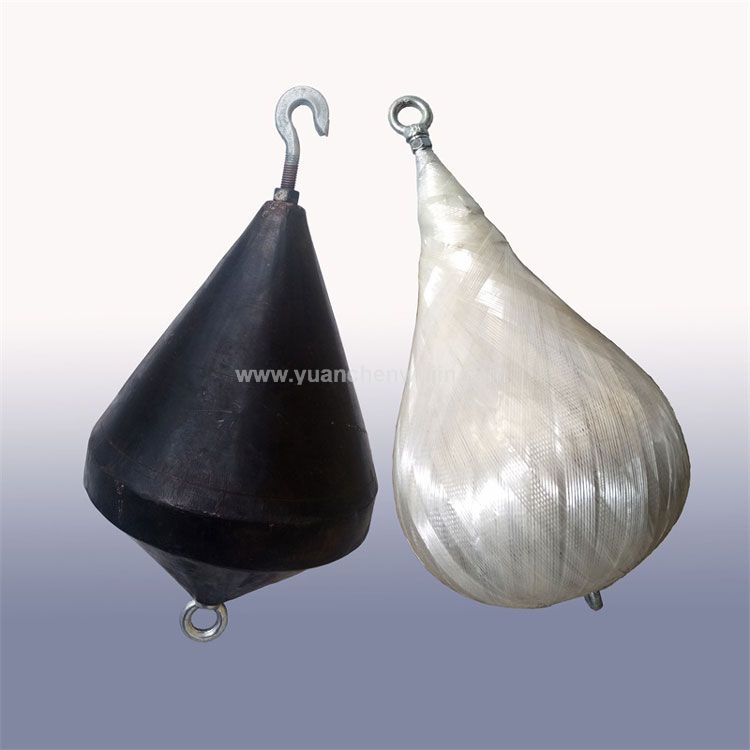

20. Hard pendulum shock device

21. Height: 330± 15mm
Max diameter: 240±10mm
Weight: 10kg± 0.1kg
Material: according to ISO standard
Filler: 3.5mm + 0.25mm

22. Soft pendulum shock device

23. Height: 330mm± 15mm
Maximum diameter: 240mm±15mm
Weight: 45kg± 0.5kg
Material: leather bag
filler: diameter 3.5mm ± 1mm lead sand

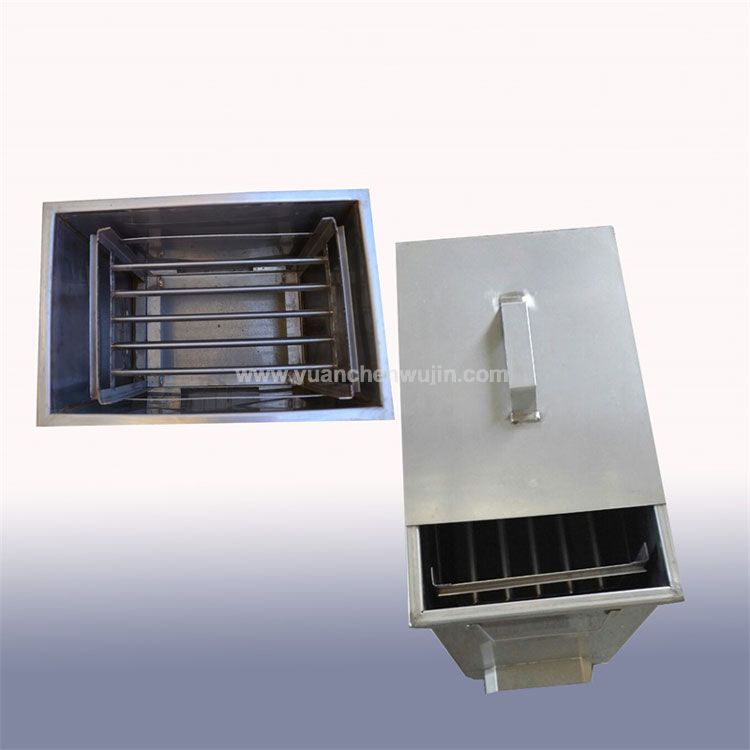

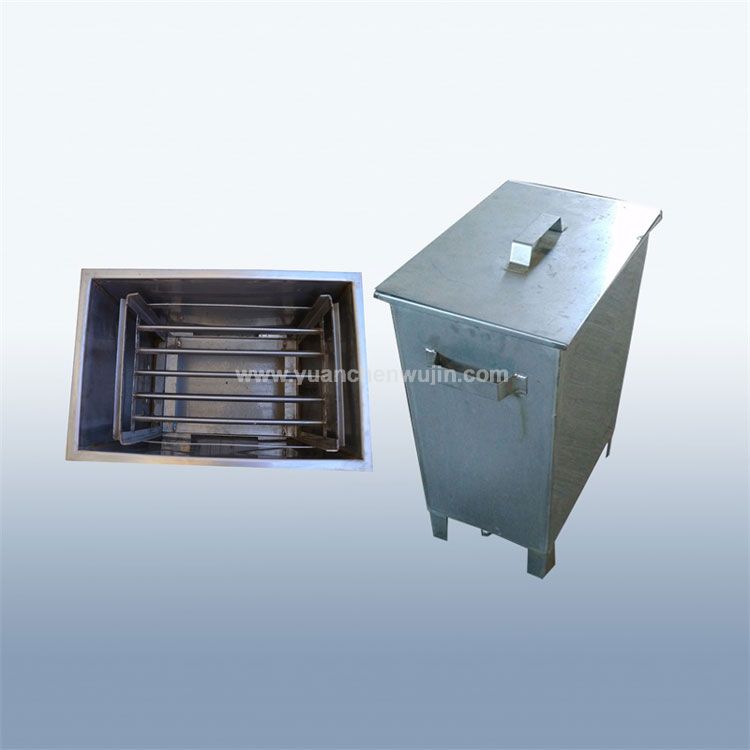

24. High-temperature test oven

25. 220V 50Hz         3 kw                                          400*255*480mm

26. At most 6  pcs samples:300mm*300mm            For laminated glass
