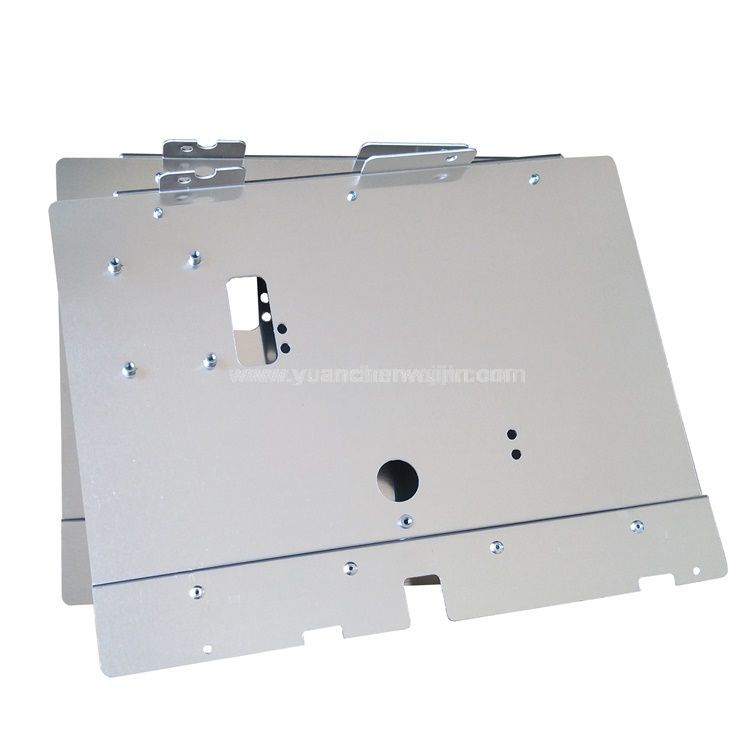

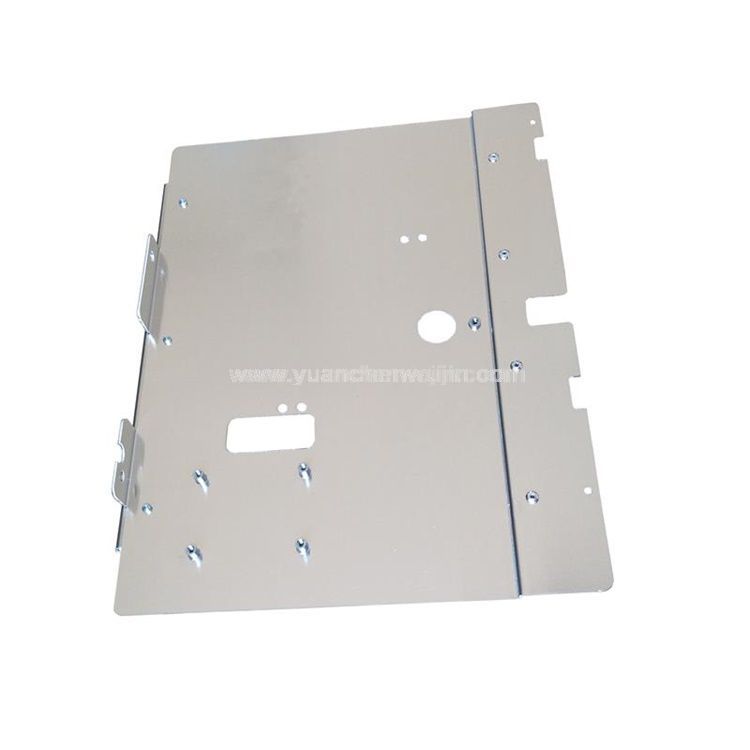

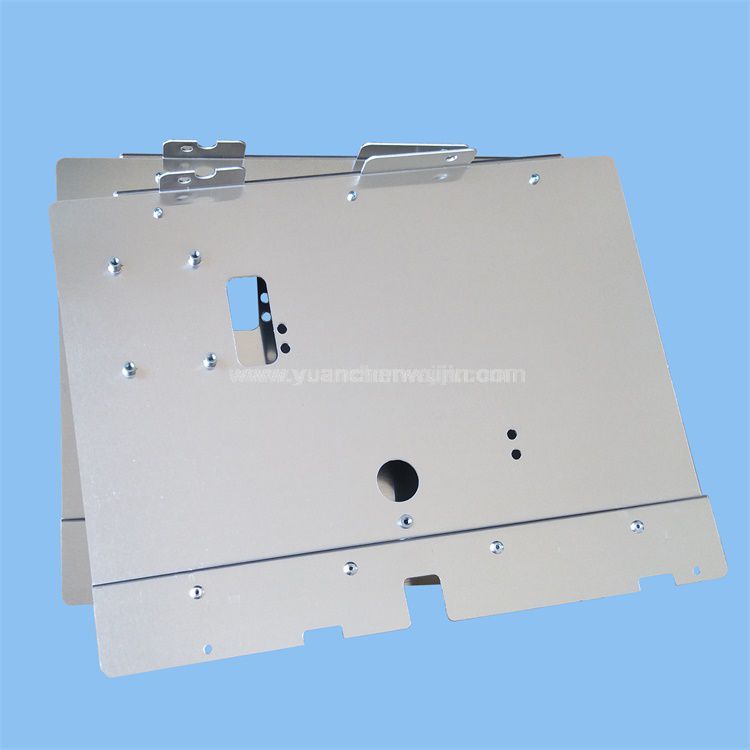

LCD Screen Fixing Plate for Electronic Instruments and Medical Equipment
Stamping, Punching, Bending and Riveting of 1.5 mm Al Sheet Metal Parts

Material: Al Sheet
Thickness: 1.5mm
Size: 270mm*228mm*18mm

Sheet metal parts for instrumentation, machinery and medical equipment.

Such as: LCD Fixed Board, Shield Cover, Protective Cover, Sensor Bracket, Battery Compartment, Power Interface Board, Sheet Fixed Support, Sheet Metal Parts, Fixing Bracket, Fixed Plate, etc

Service:
OEM ODM Non Standard Customized Processing

Wire Cutting:
Max Length: 700 mm Max Diameter: 400 mm Max Thickness: 100 mm Tolerance: 0.02 mm

Laser Cutting:
Carbon Steel: 0.5 mm - 16 mm Stainless Steel: 1 mm - 8 mm Aluminum Alloy: 1 mm - 8 mm Brass: 1 mm - 4 mm
Max Size: 4000 mm * 2000 mm Positioning: ±0.03 mm Repeated: ±0.02 mm Maximum Speed: 169 m/min

Materials:
Carbon Steel Plate /Galvanized Sheet / Aluminum Alloy Plate / Stainless Steel Plate / Copper

Moulds:
Stamping Die / Punching Mould / Bending Mold / Deep Drawing Mould / Blanking Mold / Die Cutting

Processing:
Laser Cutting / Stamping / Punching /Sheet Bending / Metal Forming / Metal Welding / Riveting

Category:
Cable Hooks / Metal Enclosure / Shims / Spring Pieces / Hinges / Embedded Parts / Gaskets / Clips

Applications:
Machinery / Equipment / Building / Electronic / Automobile / Medical Device / Handicrafts / Home / Decorative

Professional Manufacturer OEM/ODM
Sheet Metal Fabrication/Nonstandard Metal Parts/Safety Glass Test Equipment
