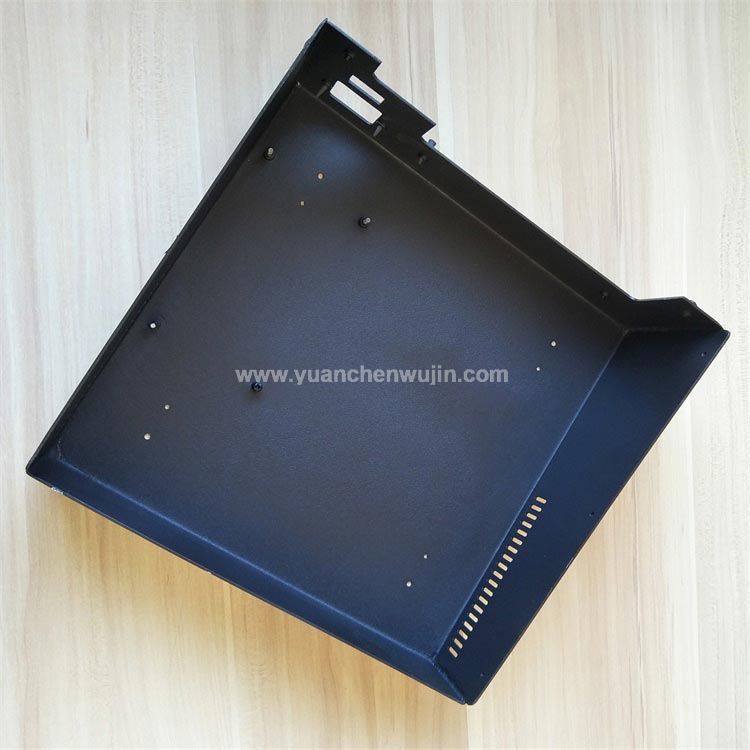

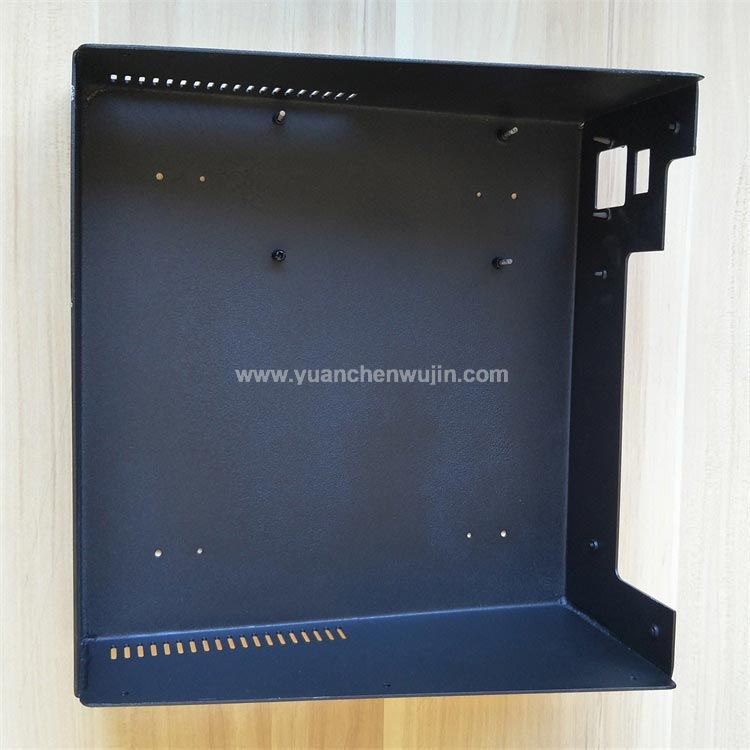

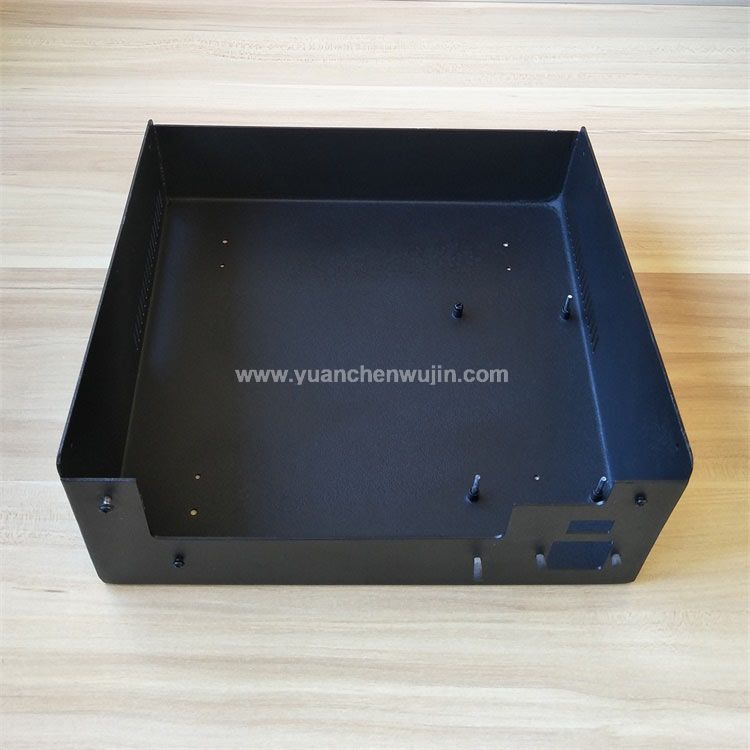

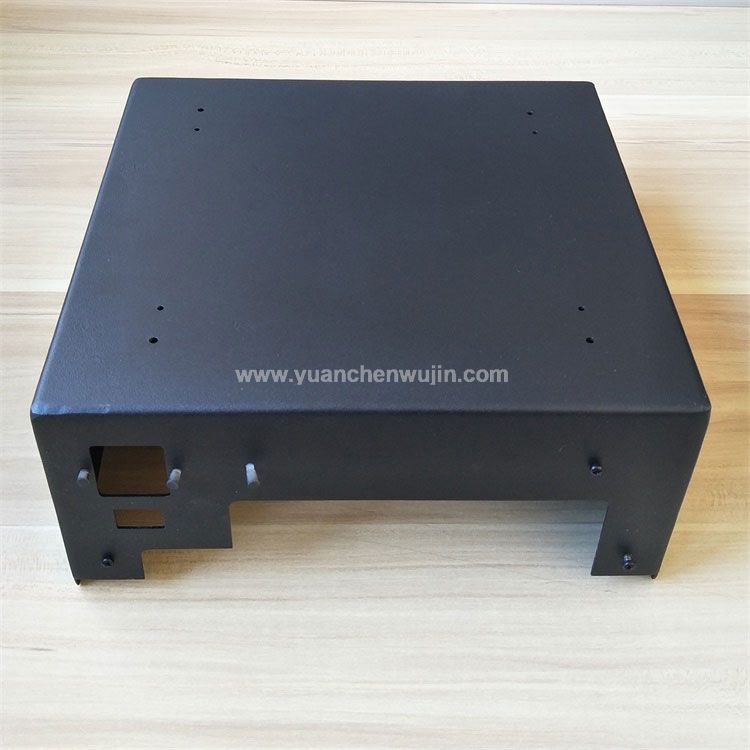

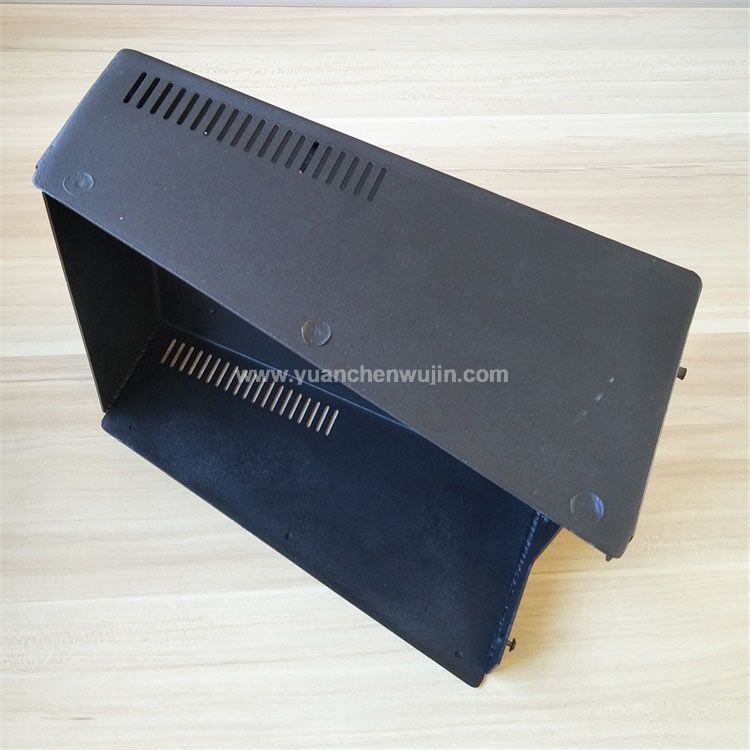

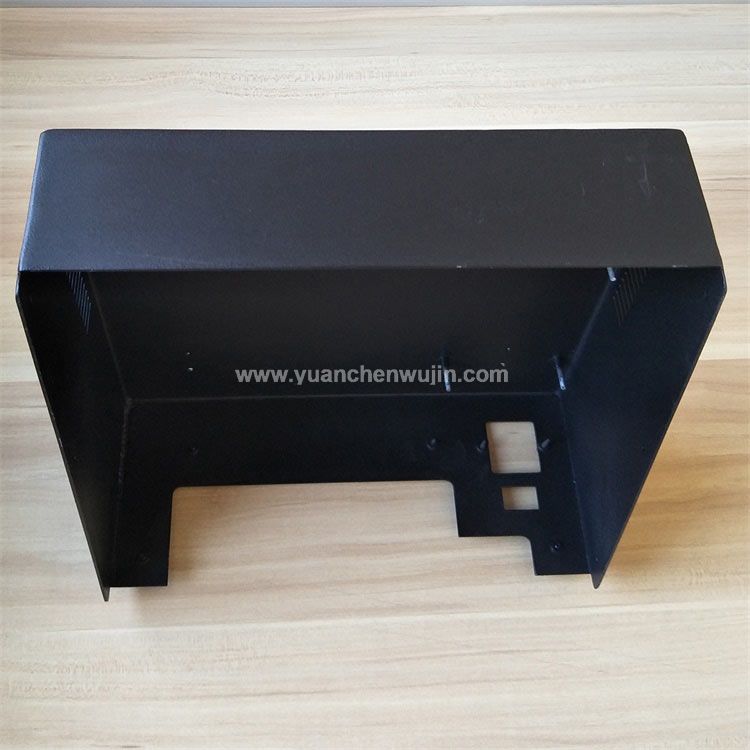

Sheet Metal Processing Parts for Main Support of Medical Devices
Stamping and Bending of Non-standard Sheet Metal Parts

Material: Cold Rolled Plate
Thickness: 1.5mm
Surface: Sprayed
Size: 264mm*255.5mm*119.7mm
Tolerance: 0.2
Weight: 1645g
Process: Blanking Stamping Bending Riveting
Application: Medical Equipment, Inspection Equipment

Service:
OEM ODM Non Standard Customized Processing

Wire Cutting:
Max Length: 700 mm Max Diameter: 400 mm Max Thickness: 100 mm Tolerance: 0.02 mm

Laser Cutting:
Carbon Steel: 0.5 mm - 16 mm Stainless Steel: 1 mm - 8 mm Aluminum Alloy: 1 mm - 8 mm Brass: 1 mm - 4 mm
Max Size: 4000 mm * 2000 mm Positioning: ±0.03 mm Repeated: ±0.02 mm Maximum Speed: 169 m/min

Materials:
Carbon Steel Plate /Galvanized Sheet / Aluminum Alloy Plate / Stainless Steel Plate / Copper

Moulds:
Stamping Die / Punching Mould / Bending Mold / Deep Drawing Mould / Blanking Mold / Die Cutting

Processing:
Laser Cutting / Stamping / Punching /Sheet Bending / Metal Forming / Metal Welding / Riveting

Category:
Cable Hooks / Metal Enclosure / Shims / Spring Pieces / Hinges / Embedded Parts / Gaskets / Clips

Applications:
Machinery / Equipment / Building / Electronic / Automobile / Medical Device / Handicrafts / Home / Decorative

Professional Manufacturer OEM/ODM
Sheet Metal Fabrication/Nonstandard Metal Parts/Safety Glass Test Equipment
