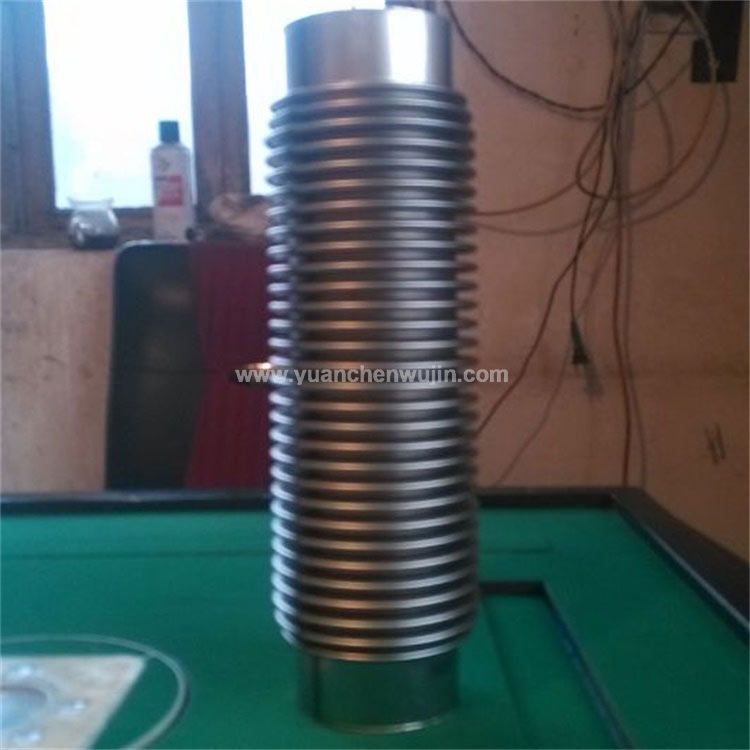

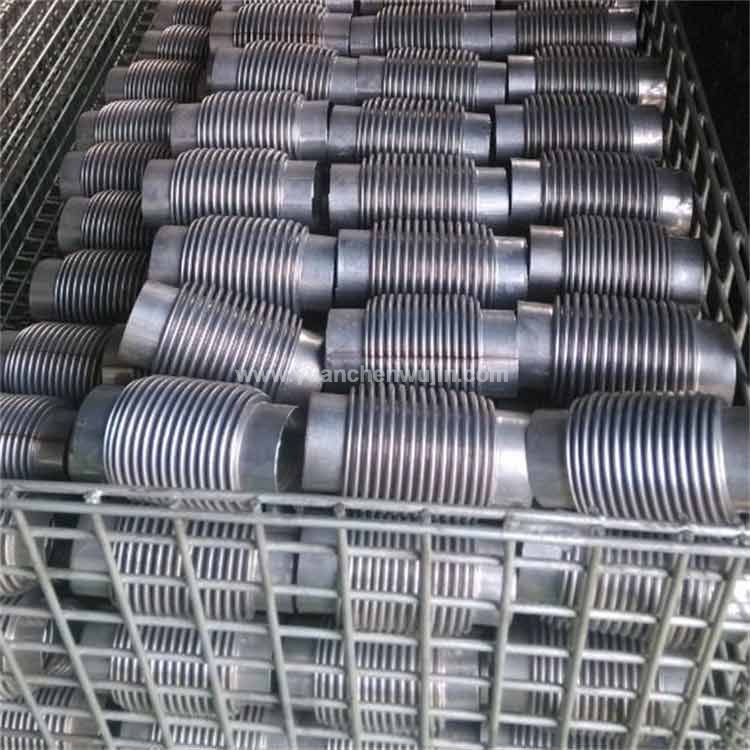

Bellows Mould and Production Line

Automatic production line of corrugated pipe
Type:Vertical/Orizontal
Automatic production line of corrugated pipe
5 workers, annual output : over 2.5million

Automatic pipe fixed length cutting production line
Double end cutting edge machine
Drawing machine

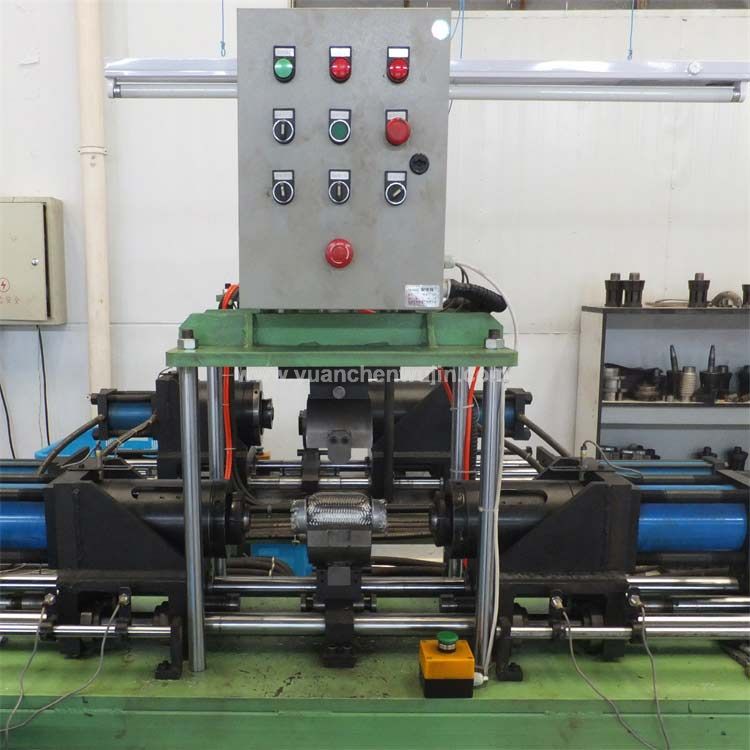

Double end double tight end cap machine
Double end cutting edge network machine
Double end expansion lining machine

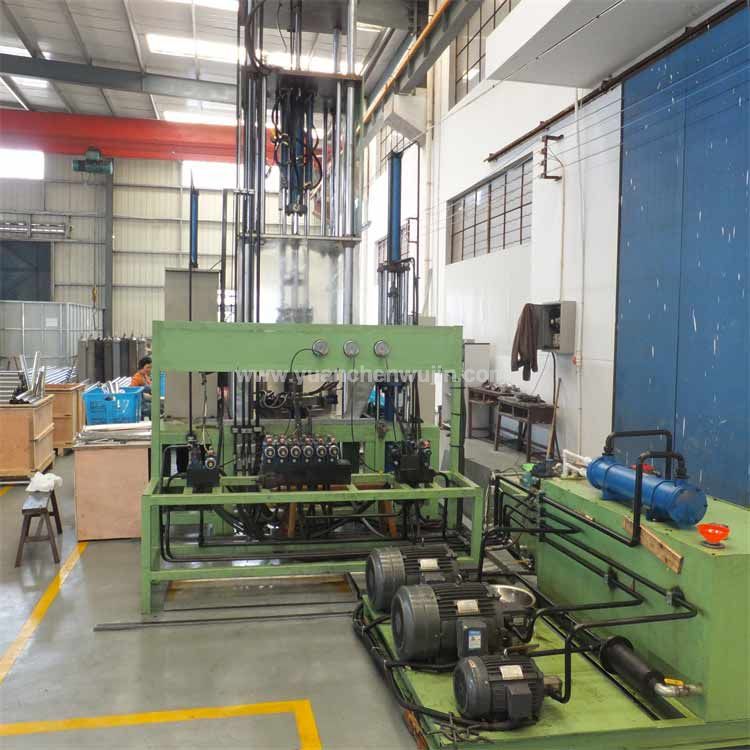

Horizontal multi wave fully automatic molding machine (Patent Number: 201320481311.5)
Vertical multi wave fully automatic molding machine

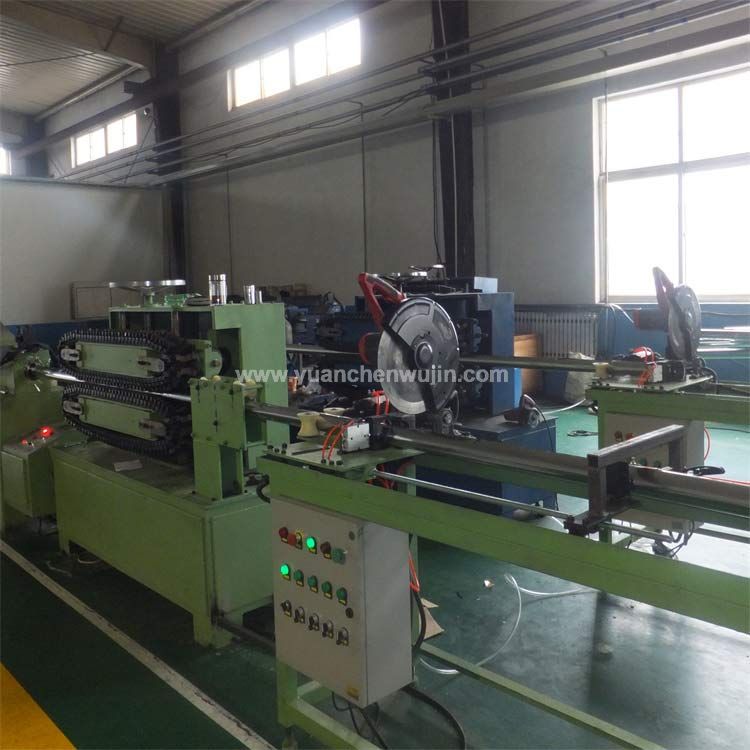

Fixed length cut off production line for automatic pipe welding
Accurate Length, clean fracture,no burr,no twice treatment needed

Paremeters:
Horizontal / Vertical multi wave fully automatic molding machine
Caliber: 39~125mm
Wave:≤ 30  (Customized ≥ 30)
Efficiency: ≥ 800 pieces /8 hours
Distance:  ≥ 5mm
Thickness: ≤ 1mm

Automatic pipe welding and cutting equipment
Caliber: 39mm-125mm
Typee: Online
Thickness: ≤ 0.3mm

Cutting edge machine
Caliber: 39mm-125mm
Efficiency: 200 pieces/ hour
Thickness: ≤ 0.6mm

Bellows drawing machine
Caliber: 39mm-125mm
Efficiency: 150 pieces / hour

Tight end capping machine
Caliber: 39mm-125mm
Efficiency: 150 pieces / hour
