GlasSmart 1000 Measuring Equipment

Portable on-site Comprehensive Measurement Instrument for Energy-saving Glass

Introduction

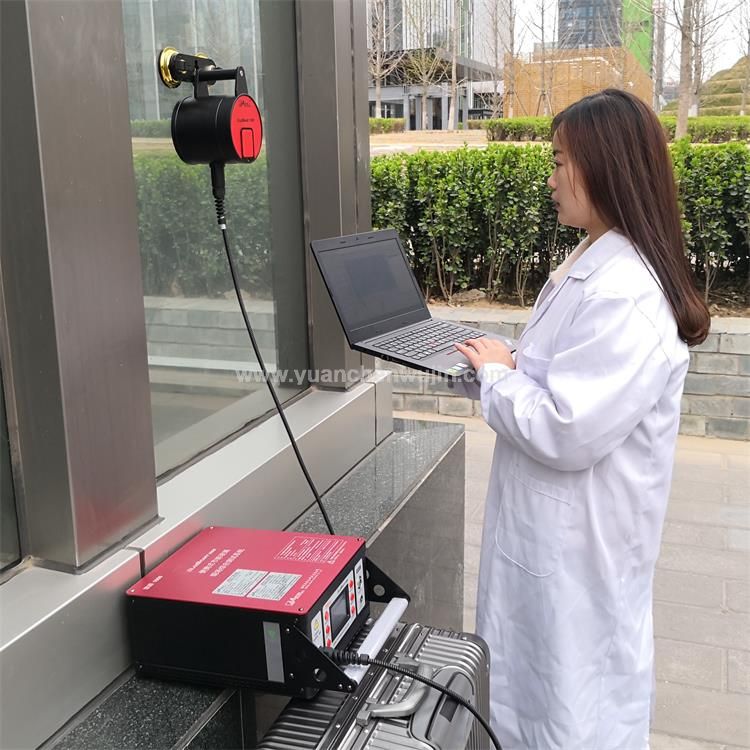

It is especially suitable for testing and evaluating the performance of installed glass on engineering site, and verifying the consistency between large IG glazing and small sample.

To help owners, The consultant, construction and supervision units understand glass quality, and to help construction quality and the organization of rapidly improving whether glass is energy-saving and whether it meets local building energy-saving standard

Field of application

Detectable index GlasSmart1000

Standard basis GlasSmart1000

On May 1, 2019, the National Standard "GB/T 36261-2018 On-site test technical condition and calculation for optical and thermal parameters of energy saving glass for building" put into mplementation.

The standard specifies the calculation parameters, test classification, The standard breaks through the bottleneck that the optthermal properties Of glass can only be tested in the laboratory, and can directly test all kinds of energy-saving glass installed in buildings.

It solves the problem of inconsistency between the installed glass and the samples sent for inspection in the glass industry

The GlasSmart1000 is independently developed by our company, which meets the requirements of GB/T 36261-2018.

It can be used to measure directly the optothermal performance parameters of building energy-saving glass.

The operation method is simple and fast. Be traced to the Chinese Academy of Metrology to ensure the testing data accuracy.

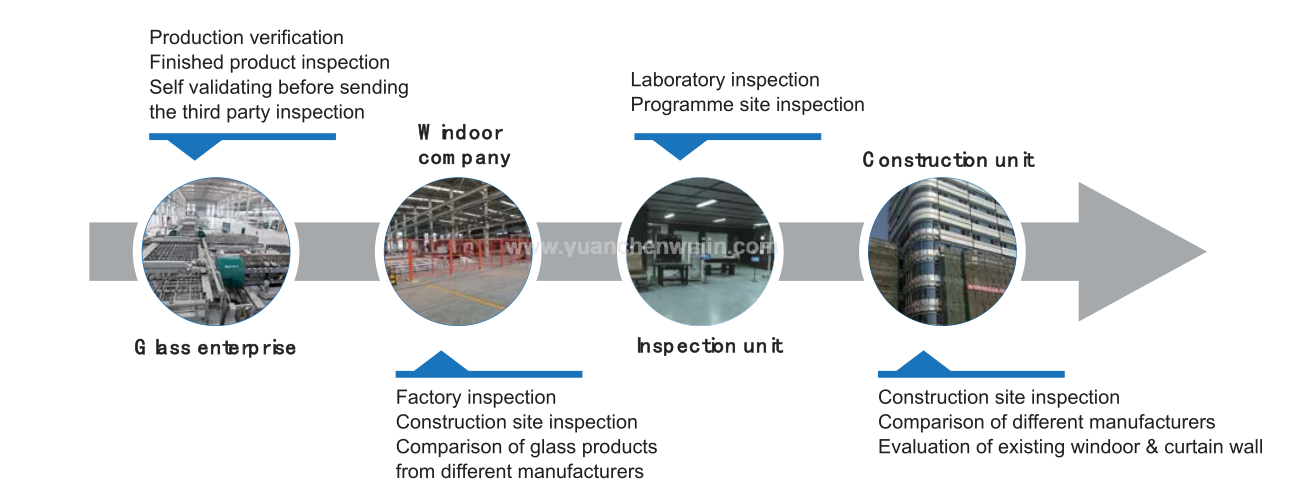

Comparison with traditional methods GlasSmart1000

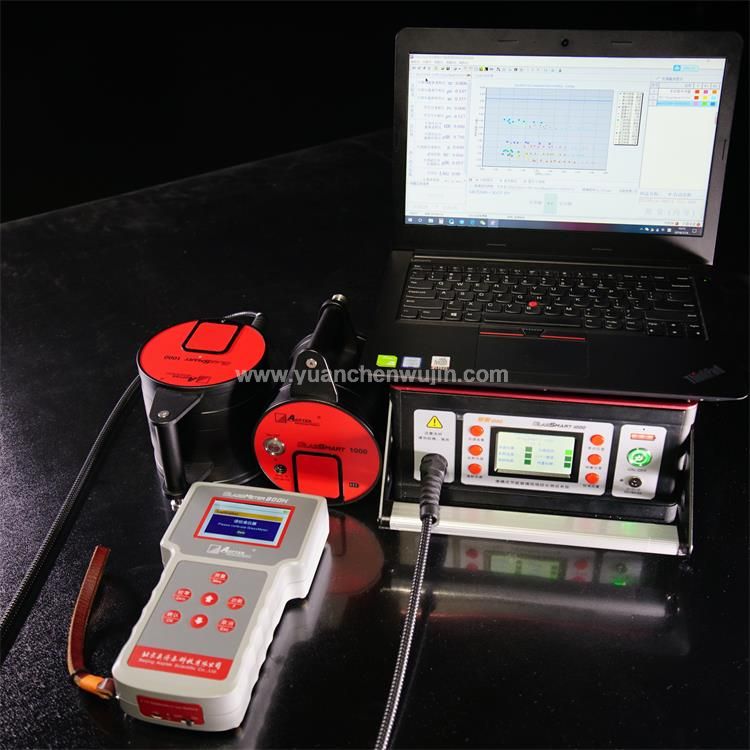

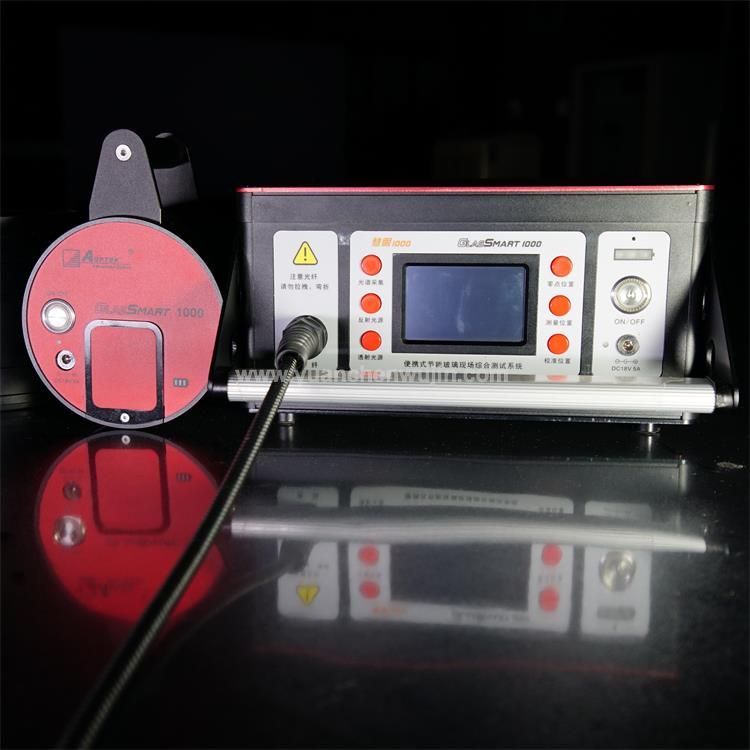

Main functional characteristics GlasSmart 1000

* All basic parameters were measured*, spectrum transmission & reflection, thickness, Low -E side and E value

* Standard calculation, complete set of optical and thermal parameters are calculated according to relevant standards

* Nondestructive measurement, directly measure the optical and thermal parameters of IG

* Field measurement, directly measure the installed glass

* Guided measurement, a complete set of guided measurement, easy to use

* Full-function software, complete the measurement and calculation of all parameters

* Reliable result, the measurement value can be traced back to its source N IM (China National Institute of Metrology)

* Wireless connection, connected with computer by wifi, lithium battery power supply, suitable for site use.

*** Note: Except for special structures.

Parameters GlasSmart1000

Wavelength Range: 380nm ~ 2500nm

Interface: WiFi

Host lithium battery: 14.8V/5Ah, charging time is about 4 hours

Transmission head lithium battery: 14.8V/3Ah, charging time is about 3 hours

Duration working time: 3 hours(Intermittent work for about 8 hours)

Light source: halogen lamp

Measurement time: about 20 minutes

Glass types: installed or un-installed energy saving glass without scattering

Measurable glass thickness: 45mm

Power Supply: DC18V 5A

Operating environment: temperature -10°~40°, relative humidity <90%

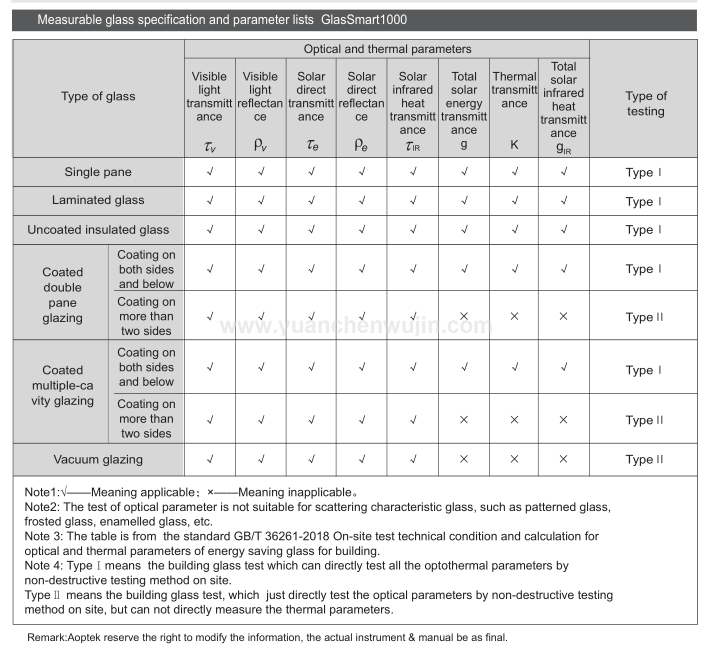

Measurable glass specification and parameter lists GlasSmart1000

Summary:

All parameters can be measured and calculated with Non Destructive and on-site.

Complete the measurement and calculation of all parameters of optical and thermal according to relevant standards.

Applicable to owners, designers, construction, supervision units and quality inspection agencies

This instruments can measure parameters as:

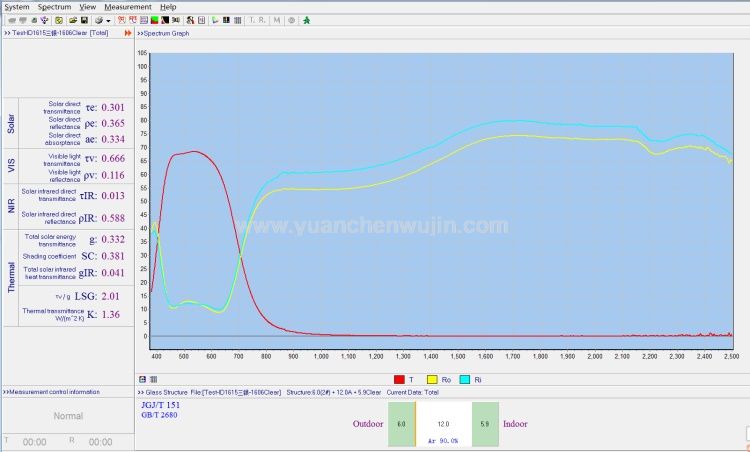

T(λ), ρ(λ), Tv, Pv, L* a* b*, Te, Pe, ae, g, gIR, Sc, SHGC, LSG, Emissivity, Glass Thickness, Spacer Thickness, Gas Volume Concentration

Safety Glass Impact Testing Equipment.

Various testing equipment such as shot bags / twin tires and impact frame, 227 and 2260 g steel ball and ball drop impact devices, boiling test instruments for laminated glass, flatness measurement instruments for tempered glass, insulating glass dew point meters and head-form。

Attached is a catalog and brief description of the testing equipment. If you need more detailed instructions, please reply to the email, thank you!

U Value Meter For IG

This instrument is suitable for single Low-E glass, double glazing or triple glazing glass which the number of Low-E side is less than two.

Ball Drop Test Device:

Steel Ball 2260g/1040g/508g/227g

Drop Height 1m-12m

Samples: 300mm/610mm

Pummel Test Device:

Hammer head diameter: 30mm

Impact Distance: Adjustable

Shot Bag Impact Testing Frame:

Shot Bag 45kg/46kg

Automatic Release

Electric Lifting

Pneumatic Clamping

Head Form Test Device

Head Weight: 10kg

Head Size: 500mm*932mm

Impact height: < 1.5m

Samples size: 1100mm*500mm

Felt hat: 90g/89mm/3mm

Frame size: 1400mm*666mm*320mm

PV Load Test Equipment

Size: 6425mm*2000mm*3490mm

Samples: 1643mm*991mm~2009mm*1027mm (Customized)

Source: Sandbag

Load: 2400Pa 5400Pa 8100Pa 10000Pa (Customized)

Pneumatic Tyres Device

Weight 50 kg ± 0.1 kg

Tire pressure: 0.35Mpa ± 0.02Mpa

Type: 3.50-R8 4PR

Forced Entry Resistant Glass Test Device

Axe: 810mm Long

Axe Quality: 1.80kg

Sample size: 610mm*610mm

Insulating Glass Dew Point Meter

Operating temperature: -80°C ~ 100°C

Tube height: 300mm

Tube diameter: 50mm

Temperature resolution: 0.1 °C

Hard/Soft Pendulum Shock Test for Lifts

Hard pendulum shock device

Height: 330± 15mm

Max diameter: 240±10mm

Weight: 10kg ± 0.1kg

Material: according to ISO standard

Filler: 3.5mm + 0.25mm

Soft pendulum shock device

Height: 330mm ± 15mm

Maximum diameter: 240mm±15mm

Weight: 45kg ± 0.5kg

Material: leather bag

Filler: diameter 3.5mm ± 1mm lead sand

Laminated Glass High Temperature Test Oven

Power: 220V 50Hz 3Kw (Customized)

Outside Size: 400mm*255mm*480mm

Inside Size: 400mm*255mm*480mm

At most 6 samples with 300mm*300mm

Tempered Glass Flatness Measuring Instrument

Measurement of arcuate form and wave form of toughened glass

Resolution: 0.01mm

Measuring Span: 300mm-12000 mm ( Customized)

Impactor for building Glass and Metal Guardrail

Impact Steel ball

Weight: 1040g ± 10g

Dia: 63mm

Shot bag impactor

Data:

Weight: 45kg ± 0.1kg

Height: 330mm ± 13mm

Max diameter: 250mm

Material: leather bag filling lead shot

Leather thickness: 0.15mm

Lead sand size: 2.5mm

Hard and Soft Body Impactors for Opaque Wall Components

Soft body:

Weight: 50kg

Dia: 400mm

Conical canvas bag filles with 3mm glass sphere

Hard Body:

Steel Ball 0.5 kg/50mm

Steel Ball 1 kg/62.5mm
